GROTTO XT

—sold—

Maximize your adventures with this fully loaded 170EXT. Stay out for months with its robust 600Ah lithium battery bank, 360amps of solar, 30 gallons of water, seating for 2 to 6 people, plenty of sleeping options, and endless storage configurations for the entire crew. The galley is built with solid bamboo cabinetry, a 7.1 CF stainless steel double door fridge freezer by Isotherm, an induction cooktop, a microwave, and a hot water sink.

Creature comforts feature an Espar on-demand diesel water/cabin heater, a fully enclosed hot water shower, and a high-powered inverter for all of your 110v goodies.

Drive: 4WD
Wheelbase: 170EXT Dually

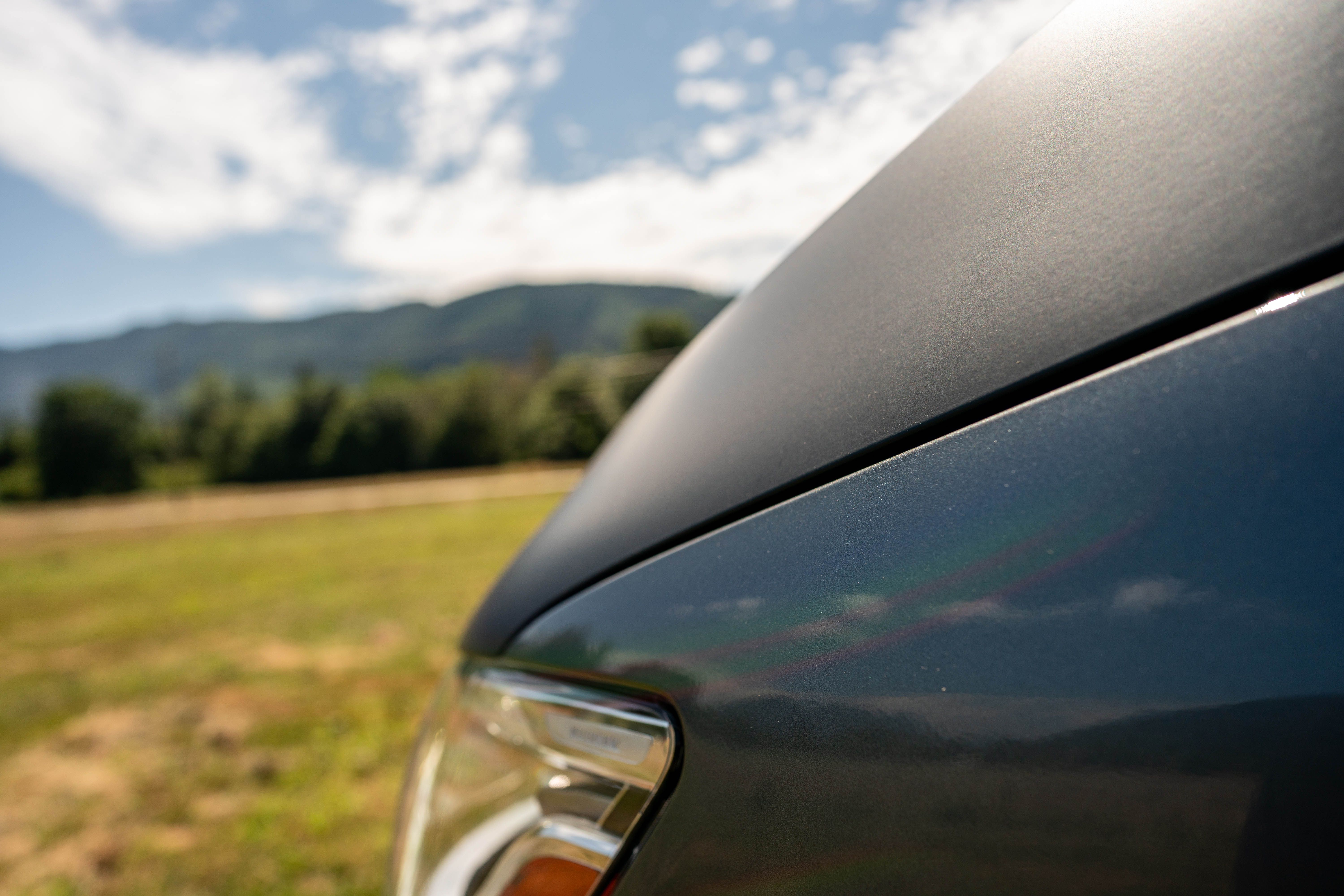

Color: Selenite Grey Metallic
Status: Sold
Mileage: 1,100 miles

Layout

Our intuitive attachment systems make it easy to swap out components to suit any adventure you choose.

* Some optional equipment included in photos and illustrations

- INSIDE -

Full coverage sound deadening material throughout. The floor is made with 19mm marine-grade plywood topped with commercial-grade Lonseal vinyl. The cabin is insulated with 3M Thinsulate and closed-cell foam.

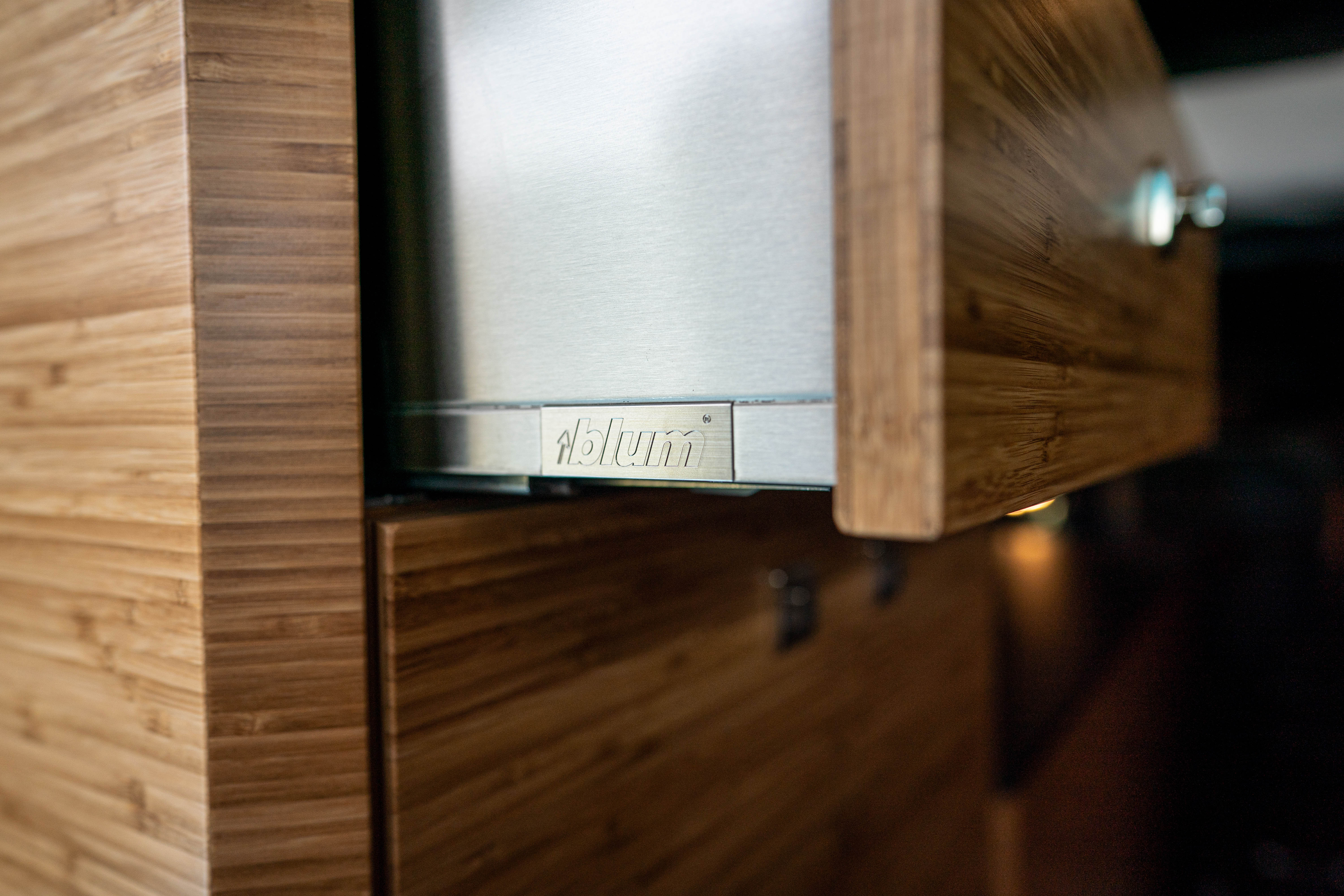

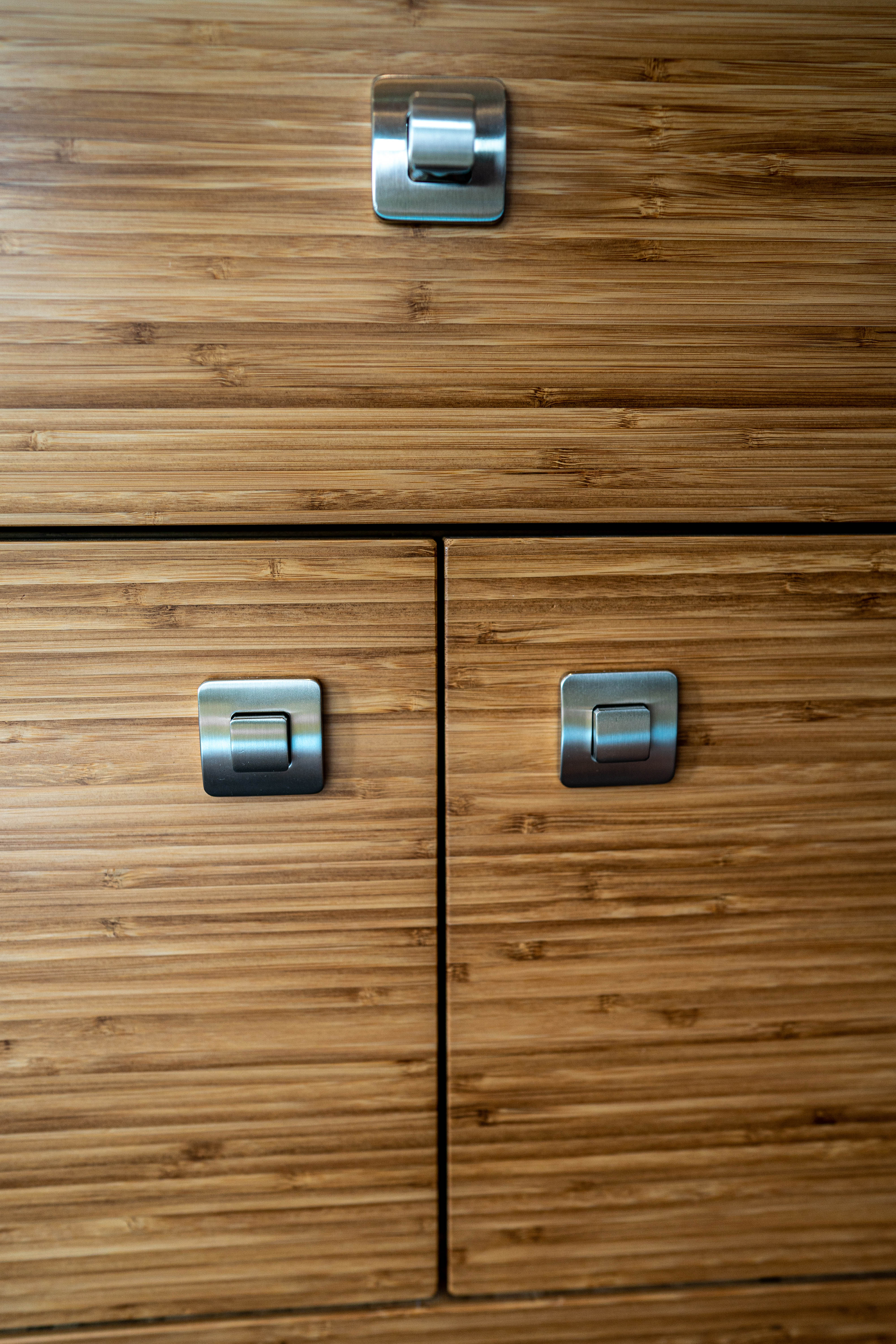

Galley, seat bench, and upper cabinets are made of solid 19mm Higuera bamboo. Marine-grade quality drawer pull latches throughout, Blum soft close hinges on the uppers, and seat bench cushions are made of premium, easy to clean Sunbrella fabric.
90” solid bamboo upper cabinet.
Hot-swappable pantry just inside the slider door for increase storage space.
Custom aluminum gear rack with mesh sides and bottom for breathability, and Mac buttons for universal hanging storage.

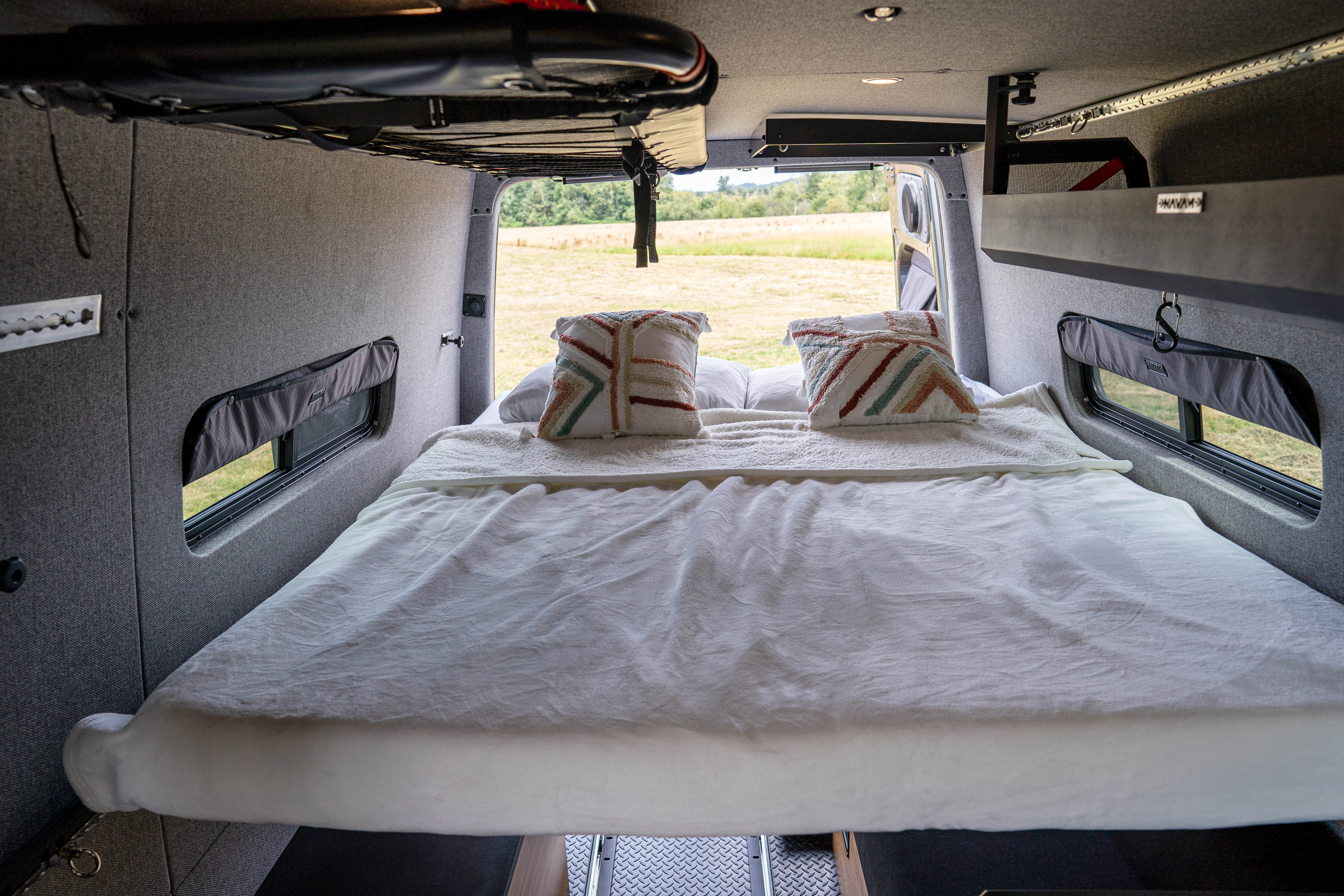

Removable panel bed system.

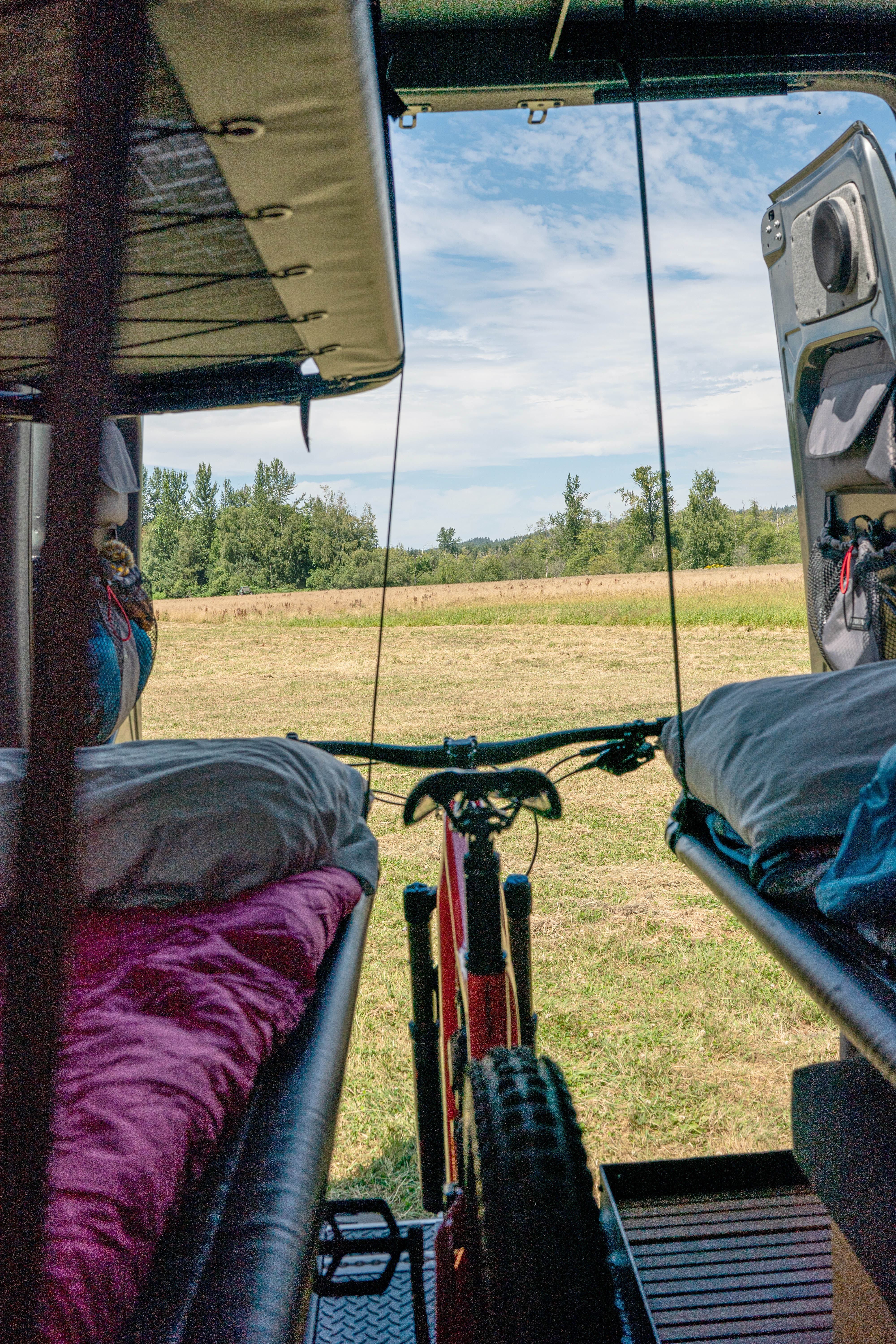

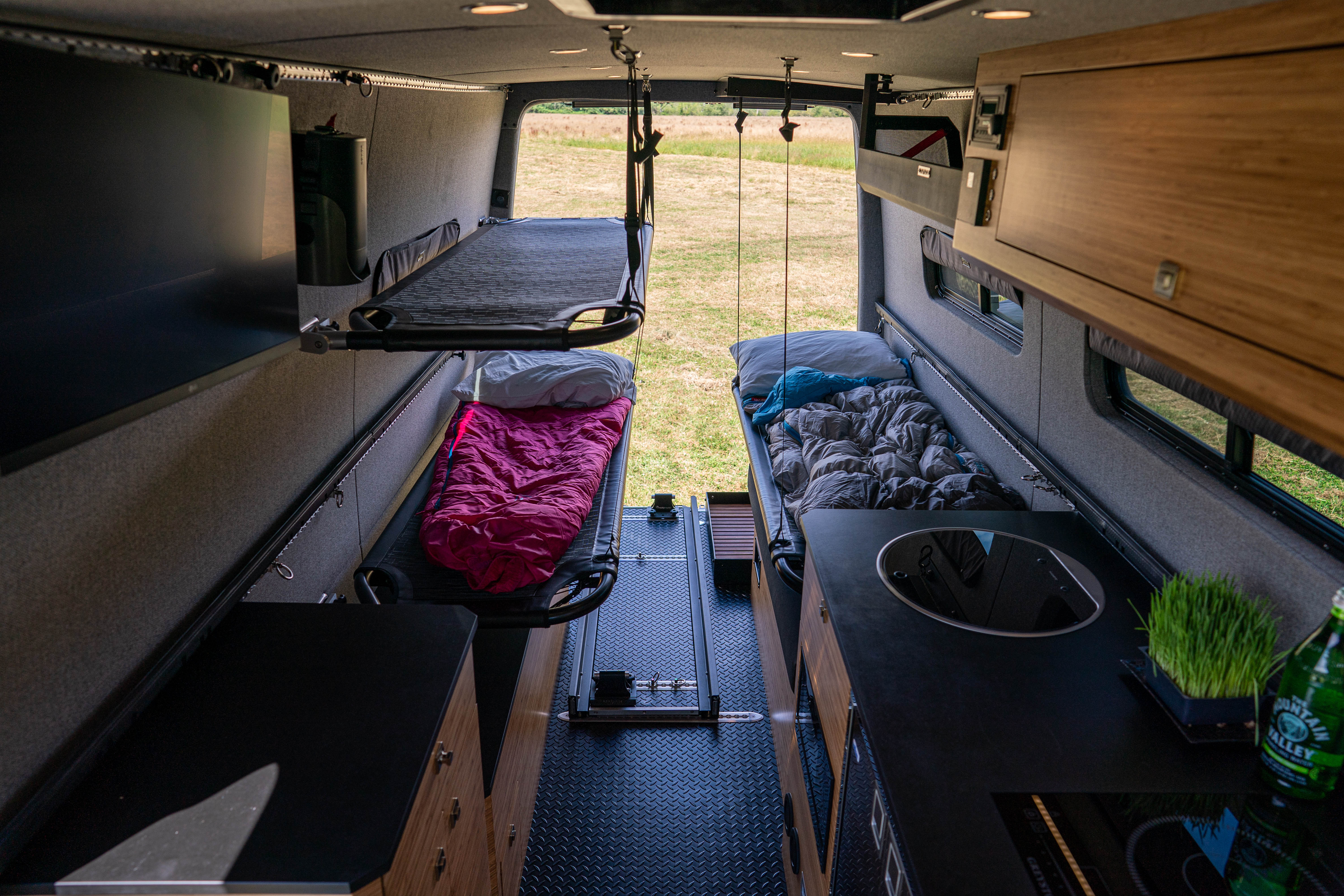

3 carbon fiber and aluminum bunks (detachable and stowable in various locations).
Seating: Drives 3 and seats 8 during hangout time (2 additional captains chairs can be added).

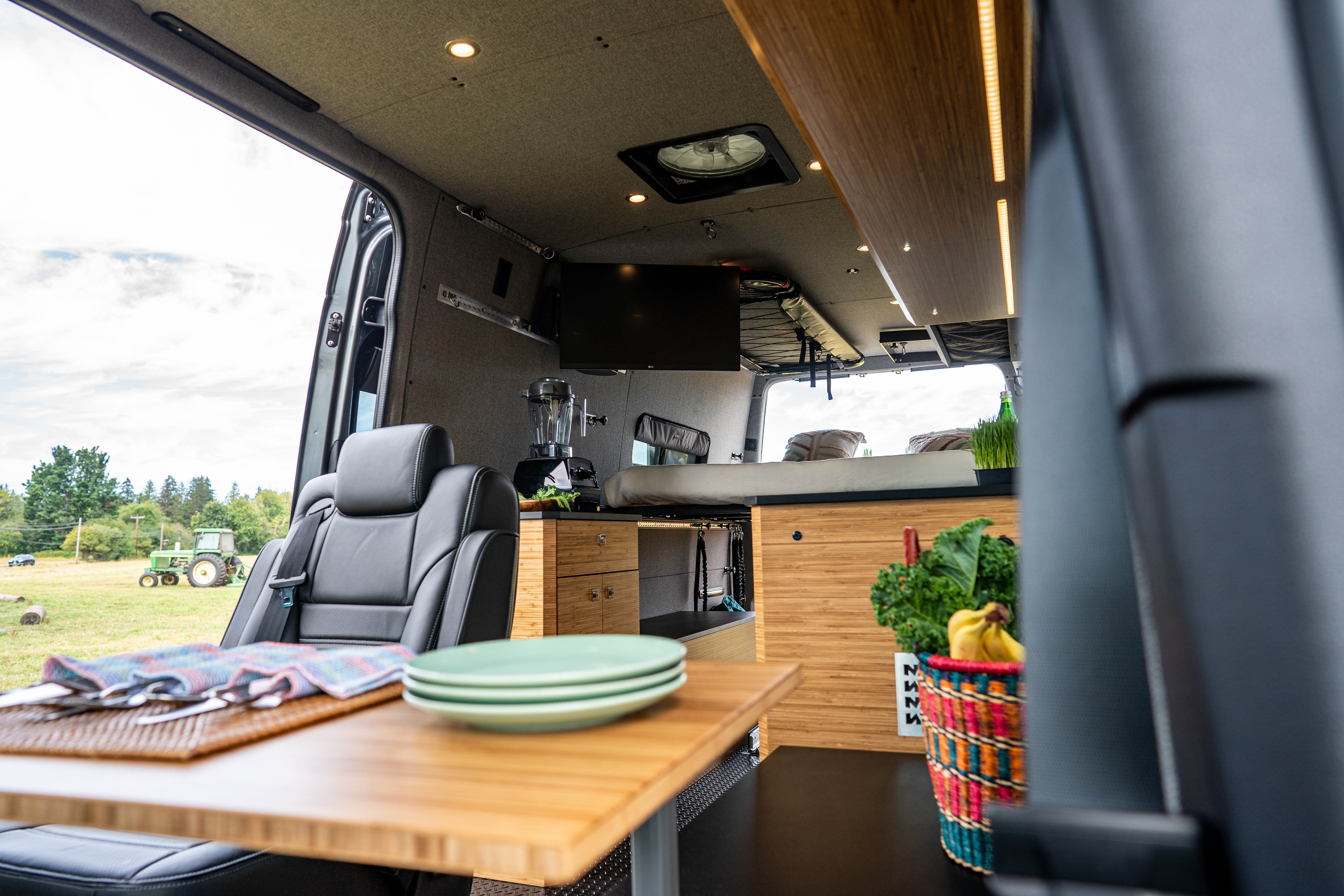

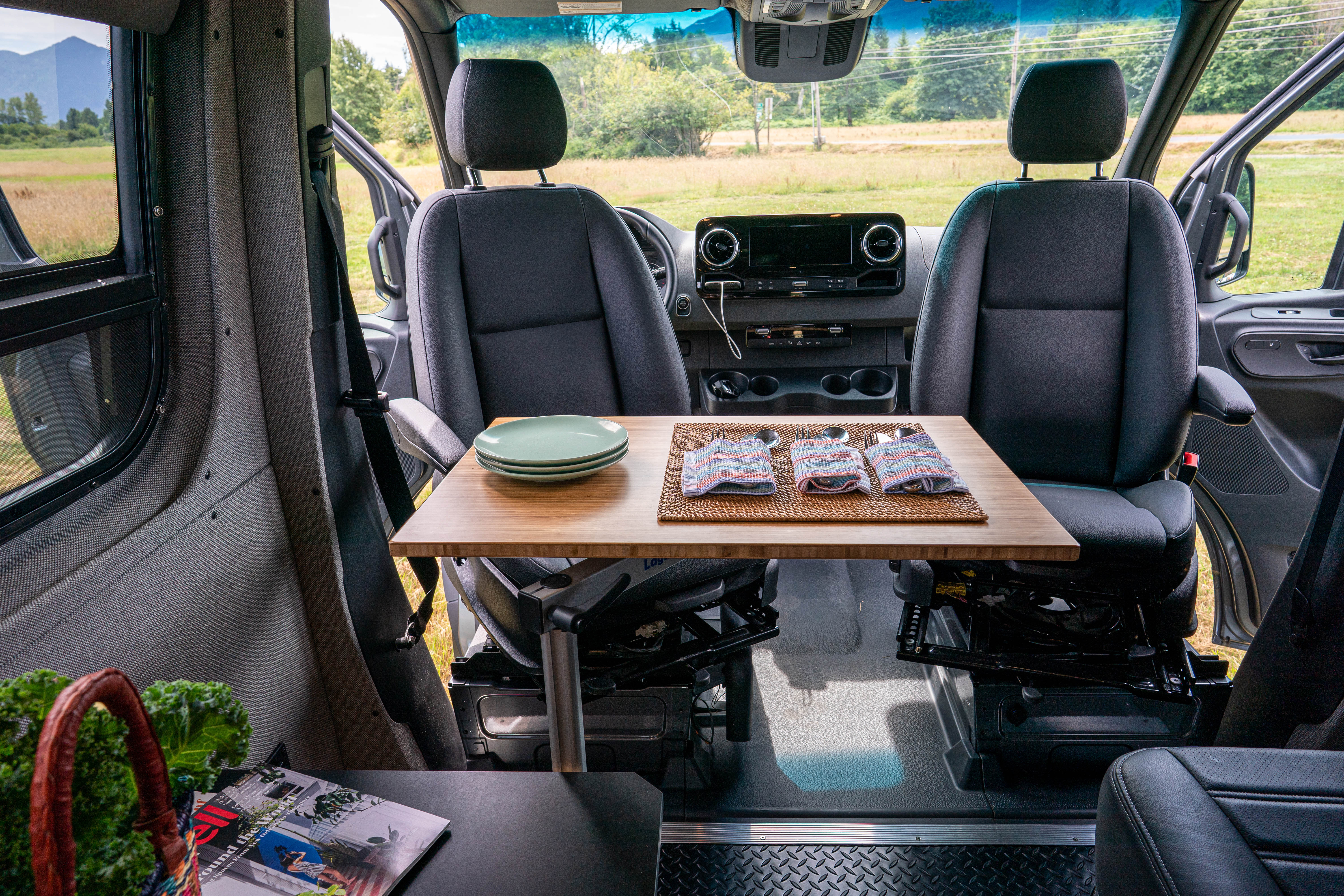

2 removable tables (front and rear).
2 Maxx Fan rooftop vents with remotes.

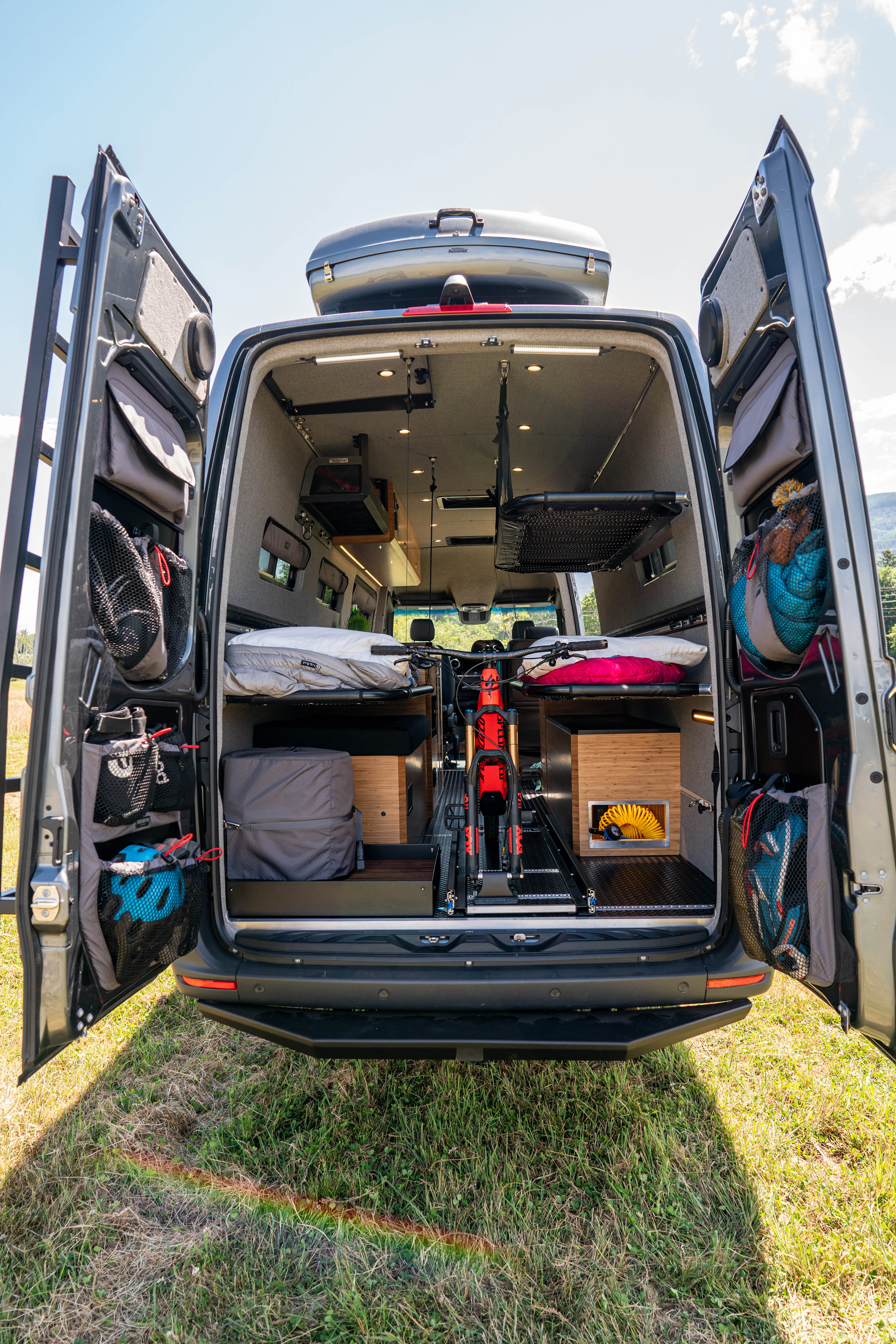

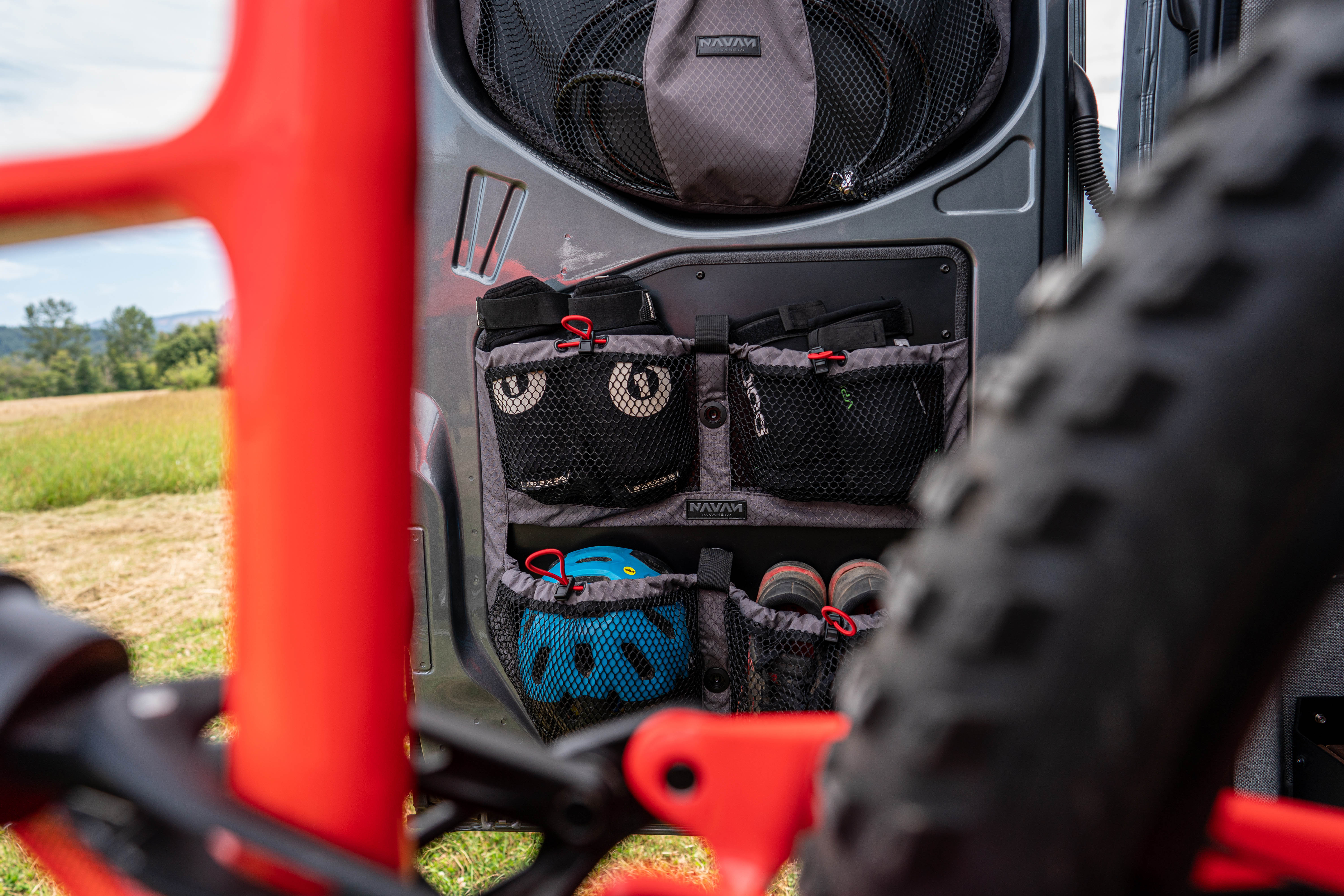

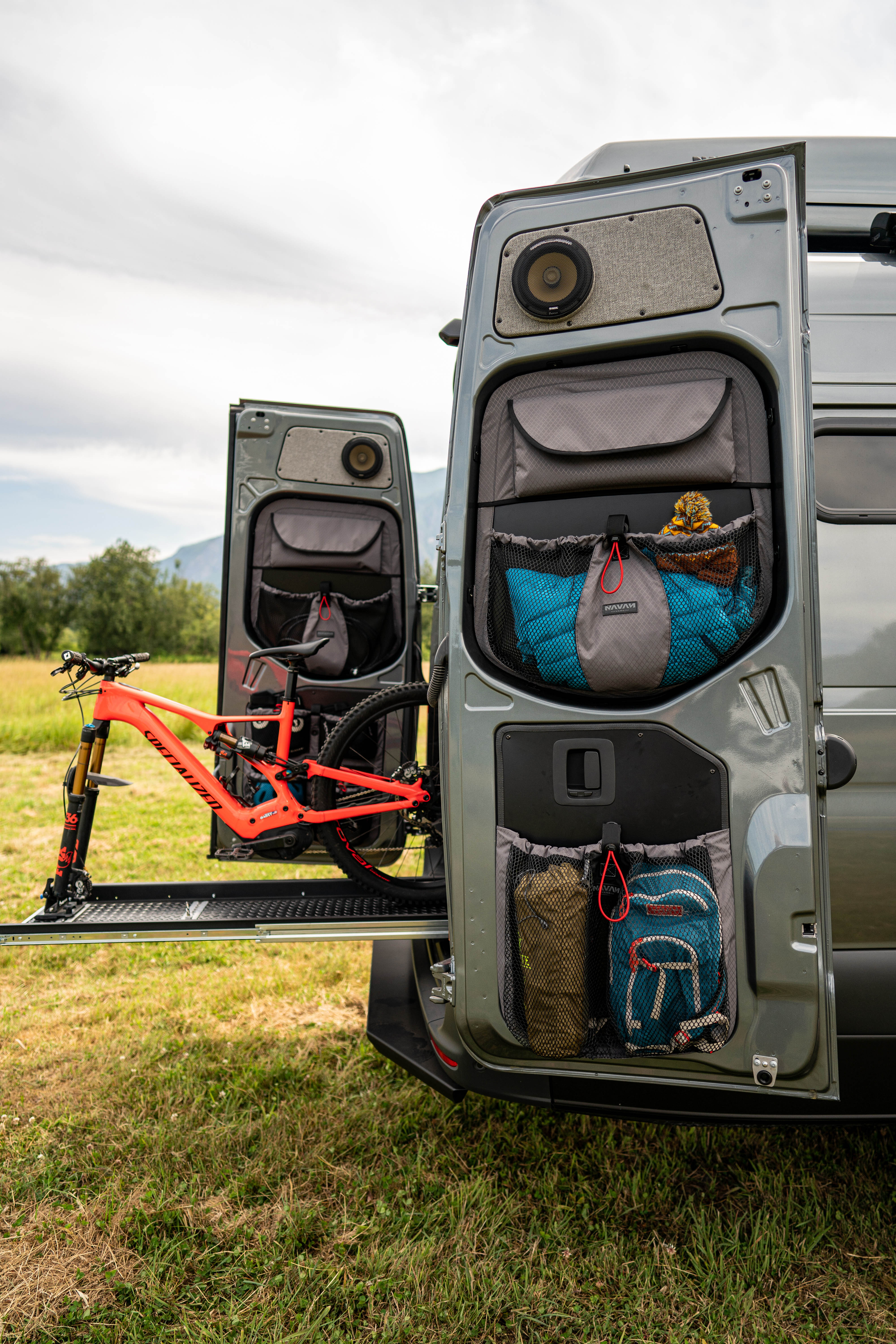

4 Rear Armor door panels with storage (2 upper and 2 lower).
Black-out privacy package. 10 piece closed cell foam-filled coverings insulate all windows and fan vents to keep the light out (or in) and control cabin temps. Coverings roll-up and snap-up or bundle-together for easy storage.
Lighting. Five circuits with on/off switches in multiple locations. 10 ceiling lights, 2 under cabinet strip lights, 2 under cabinet task lights, a single LED under the bed plus two high-powered (low draw) load lights out the back for loading/unloading gear in the dark.

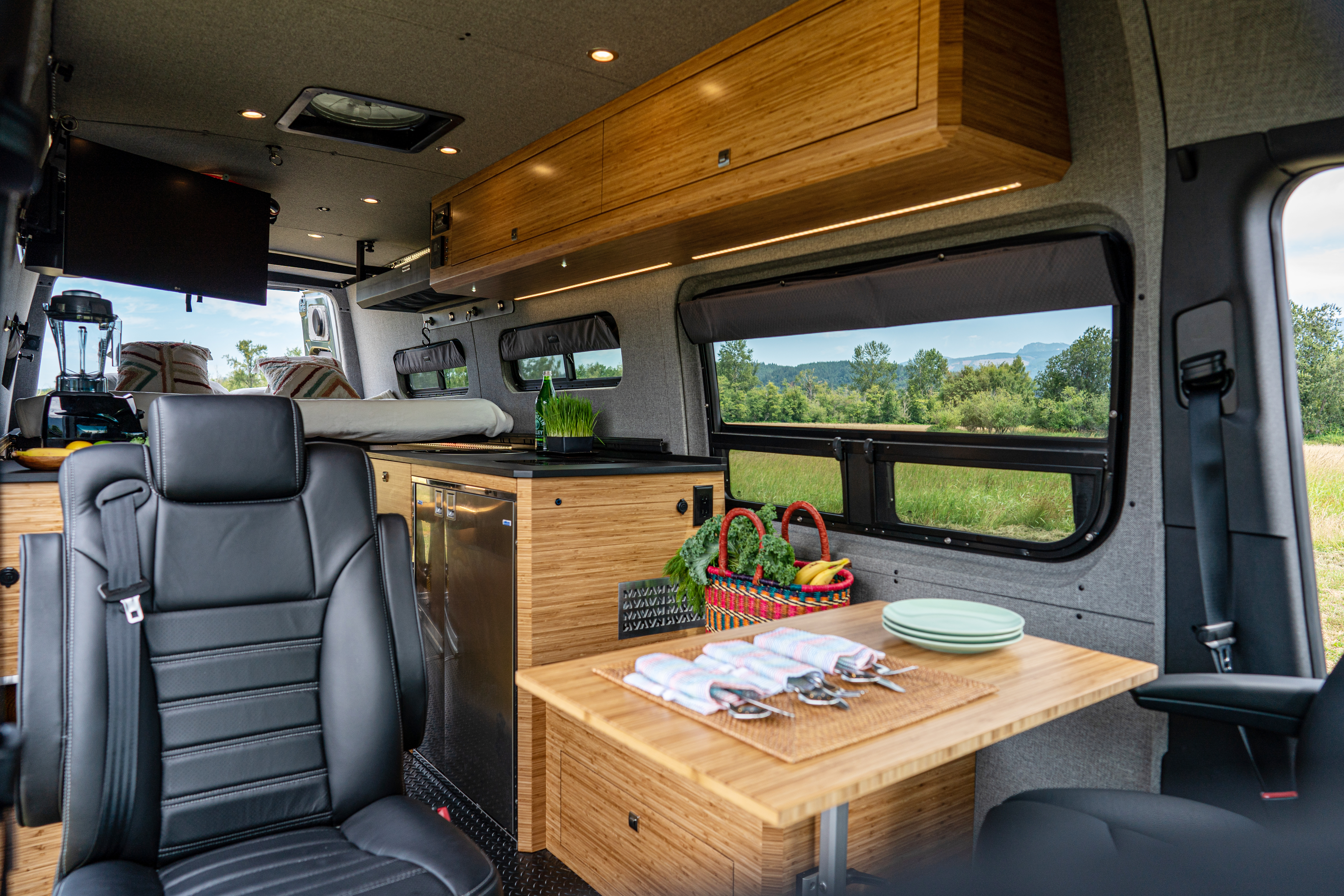

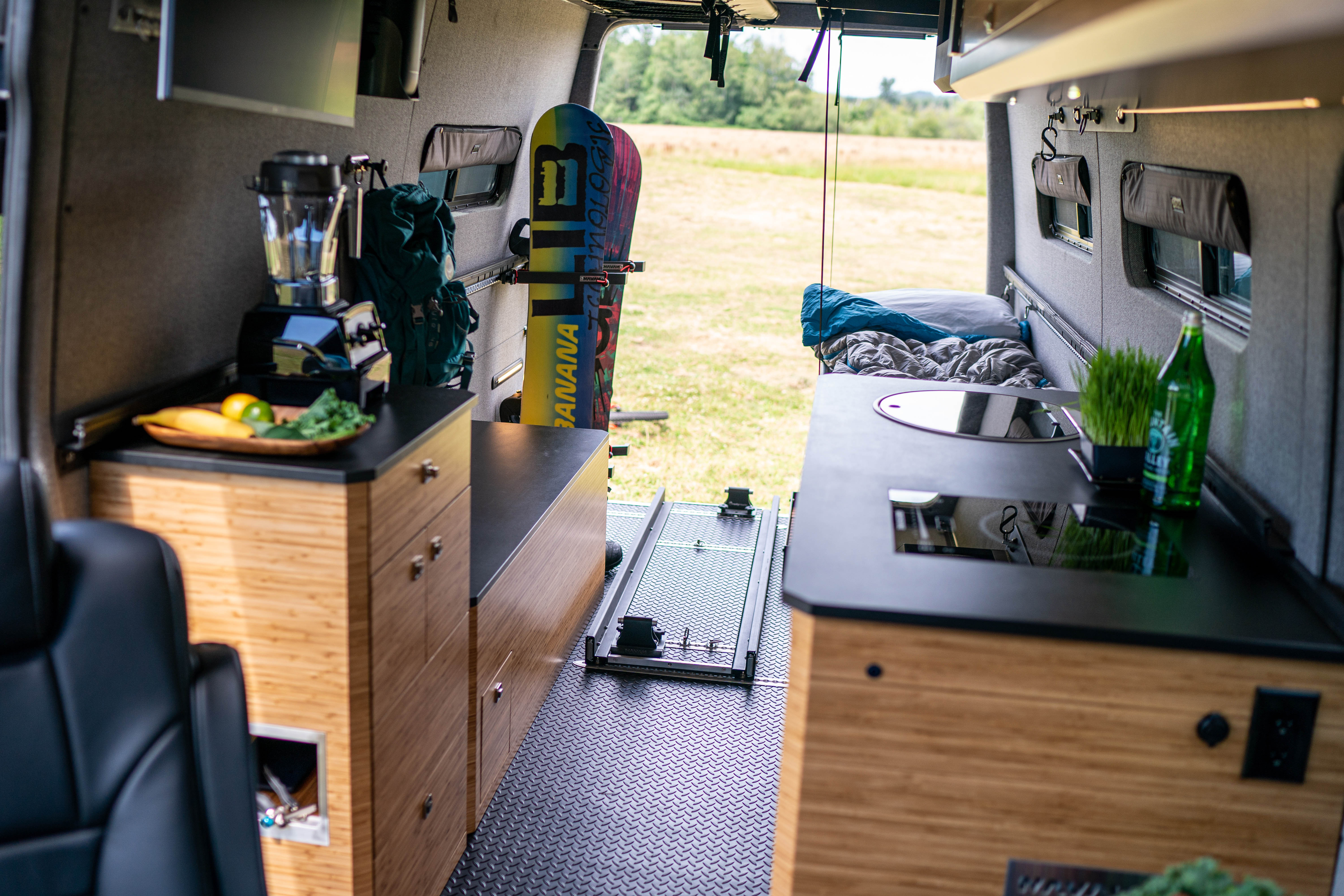

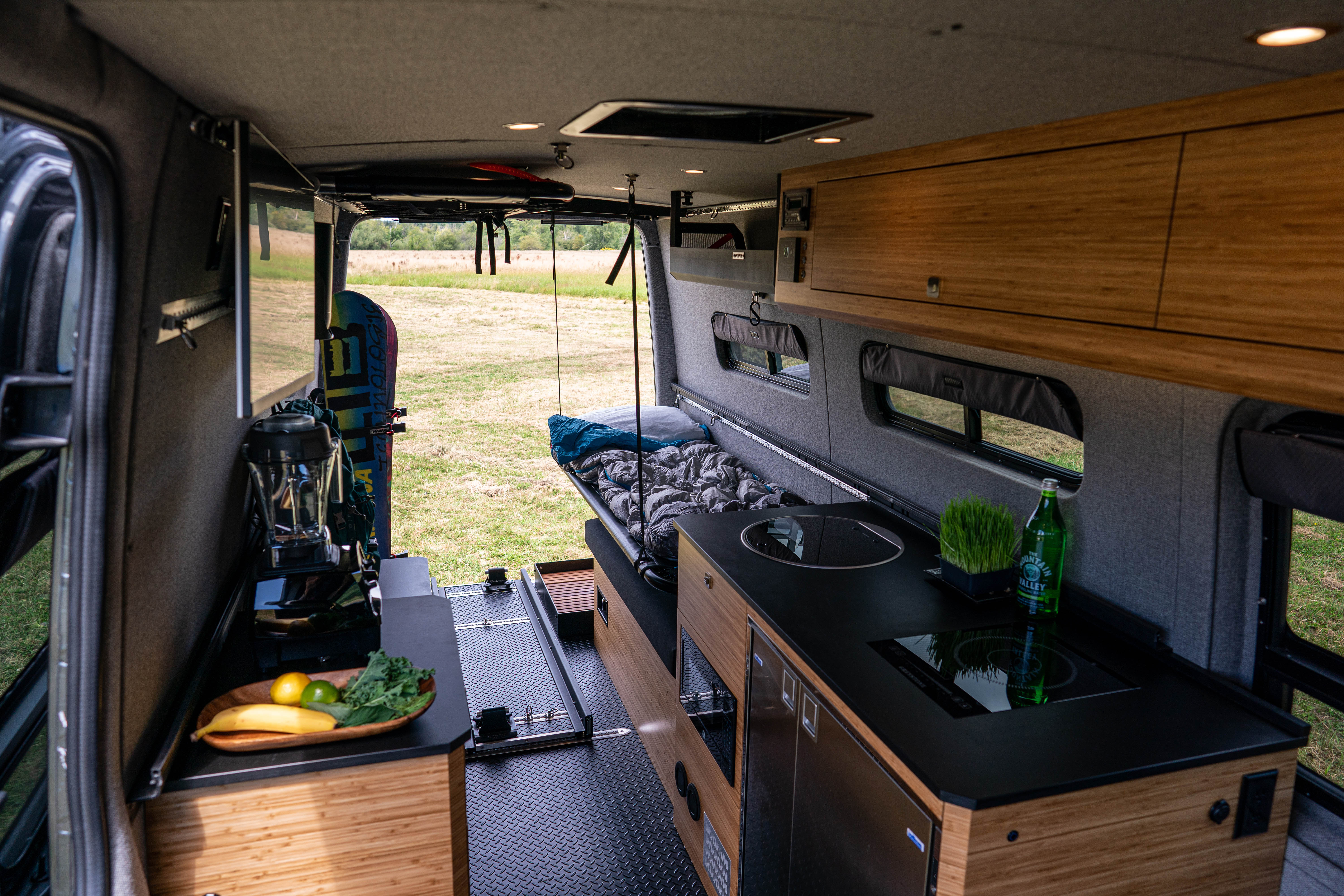

Full Galley

Isotherm Cruise 200 stainless steel double door refrigerator/freezer. 7.1 cubic feet.
GE microwave.
Induction cooktop.
Hot/cold water sink with lid.

Comfort Systems

On-demand diesel water/cabin heater.
Fresh hot/cold water system with 30 gallon ‘easy clean’ water tank.
Warm water shower. Completely removable shower pan with teak floormat. Includes custom removable upper shower housing and shower enclosure with waterproof YKK zipper.
Thetford Curve portable toilet with electric flush and custom cover.

Power & Solar System

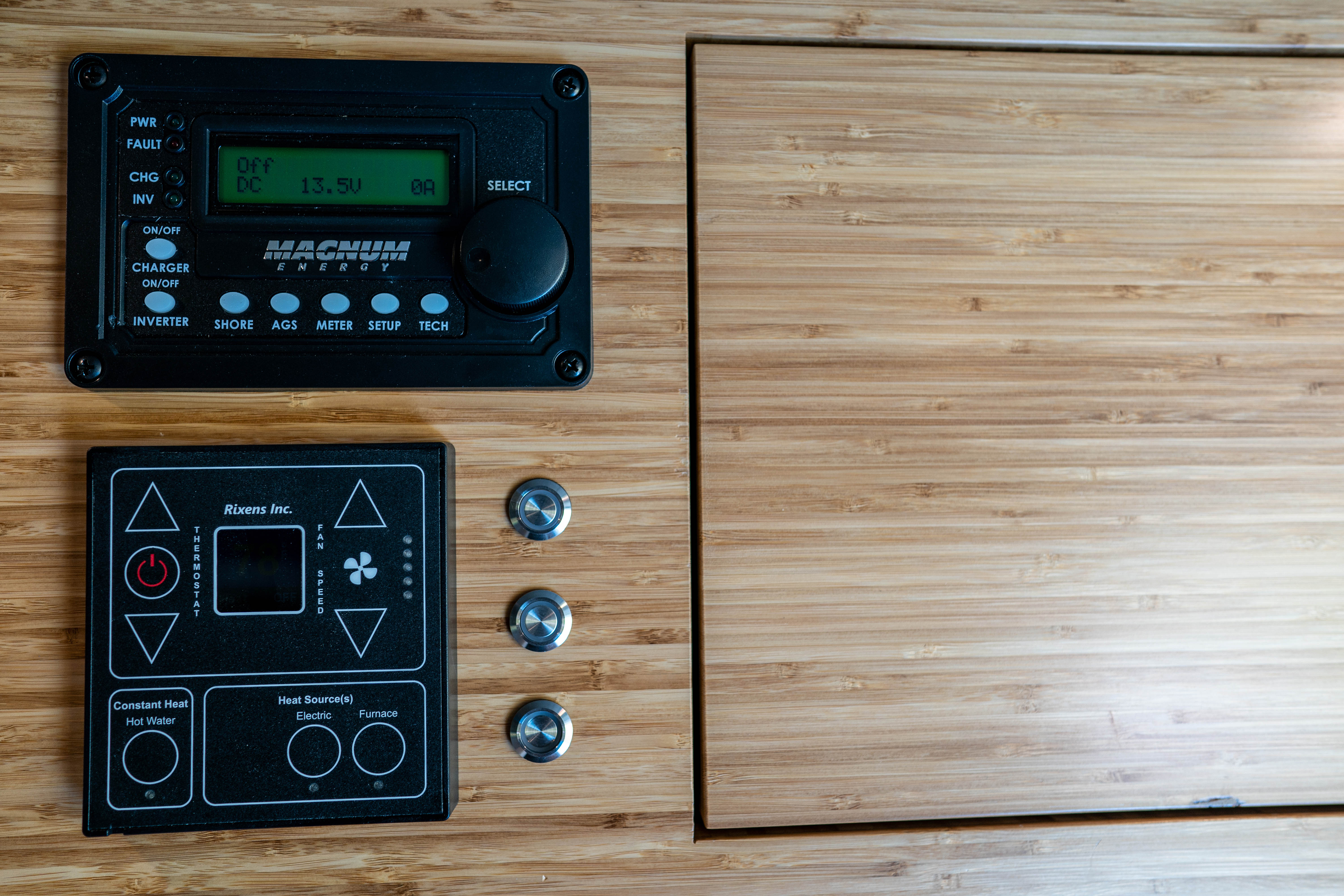

Magnum Energy 2000 watt inverter for 110v power supply.
Two 110volt receptacles, 5 double USB ports, and a 12V socket.
600ah Lithium Battery Bank: KiloVault 1.8kWh 12V 1800CHLX Cold Rated (4x 150ah batteries).
360ah of solar charge power. 2, 90-watt solar panels plus 4 atop the Packasport Apollo rooftop storage box.

Premium Sound System

Mercedes Benz proprietary Mbux multimedia system with 10.25” screen.
Alpine amplifier PDX-V9 100W x 4 and 500W x 1.
8 Speaker system by Focal.

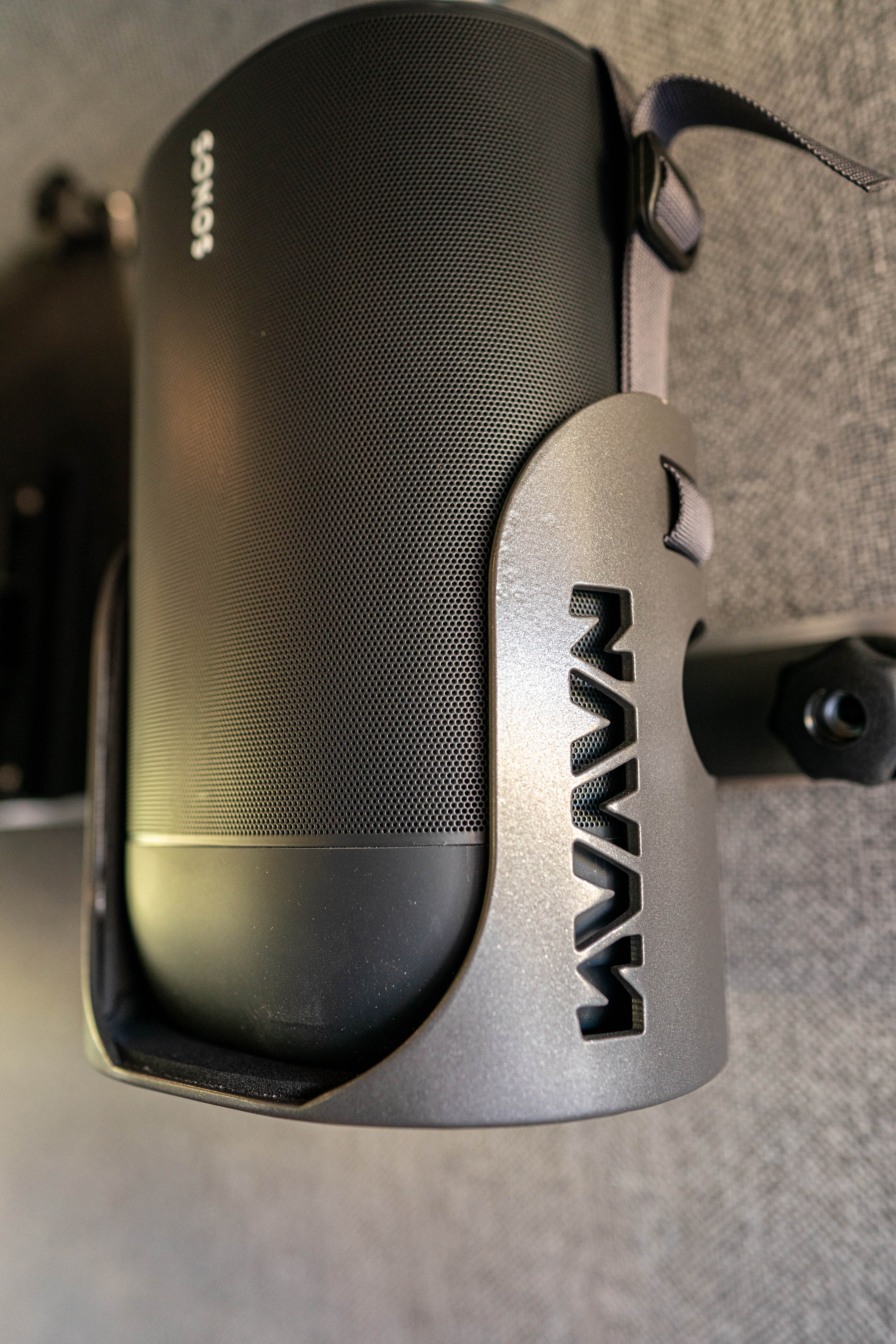

Sonos MOVE portable Bluetooth speaker with custom mounting bracket.
17" LG media monitor with custom mounting bracket.

Gear Storage and Air Compressor

Mac’s Custom tie cargo down track and buttons throughout including two on the floor with covers.
Gear storage and air compressor accessible in two locations.
>8 custom gear hold-down straps.
Viair onboard air compressor with 2.5-gallon tank in a custom bamboo cubby. Great for airing back up after beach driving, Inflating bike tires, SUP’s or simply cleaning out the van.

Available Add-ons

Additional 24” bed panel with 6” extension (extends the main panel bed by an additional 30”)
Reclining leather captains chair with armrests.
Slide-out gear tray with recessed Mac’s track, 2 custom bike attachment modules equipped with 2 Rocky Mountain thru-axle bike mounts. Also works great for snowboards/skis or anything else you want quick and easy access to things stored under the panel bed. This item is fully removable.

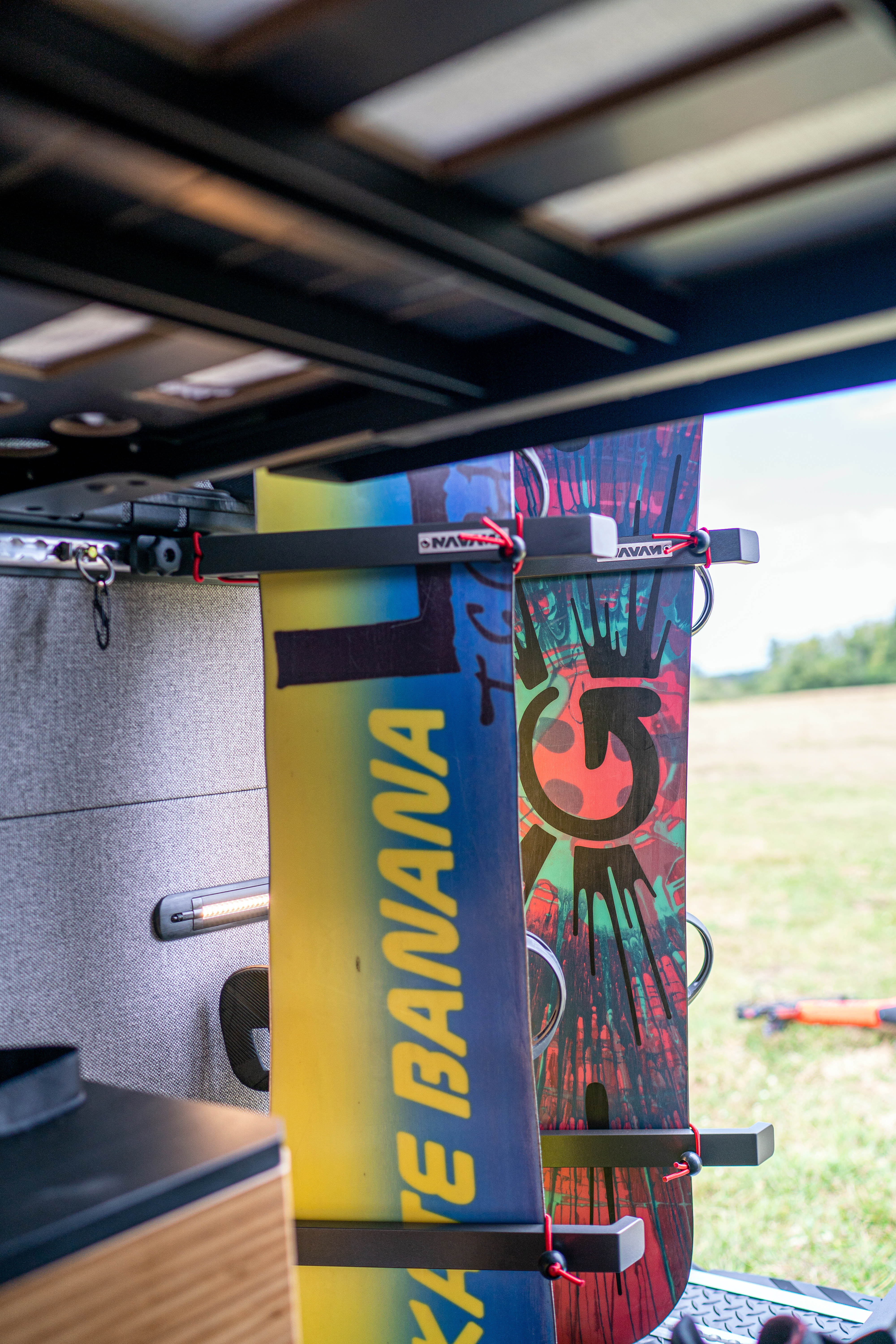

2 sets snowboard/ski vertical storage racks.

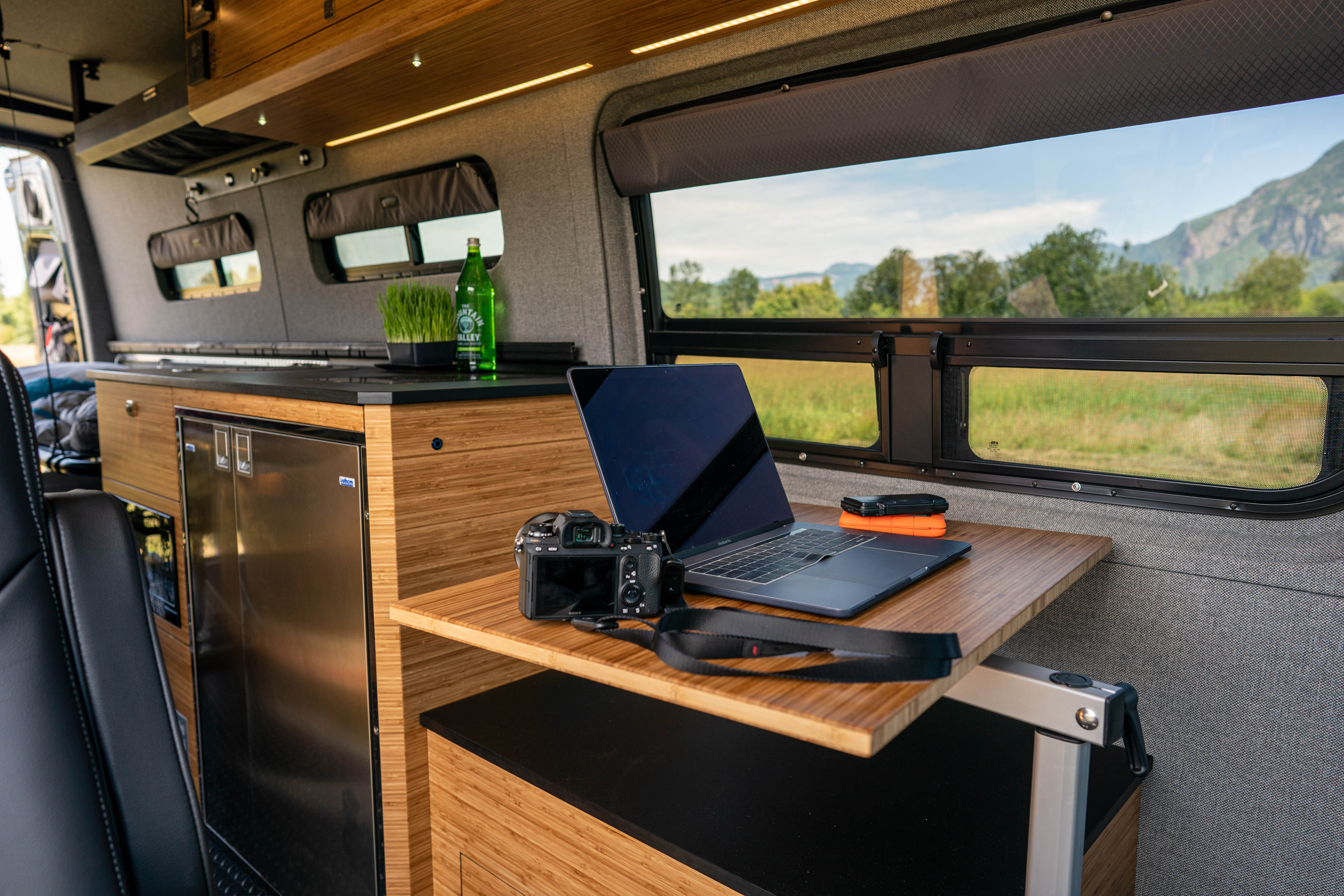

Removable end table/storage cabinet (to the right of the galley). Includes Lagun brand table that is fully removable and stows out of sight.

- see the outside -
- see add-ons -

- OUTSIDE -

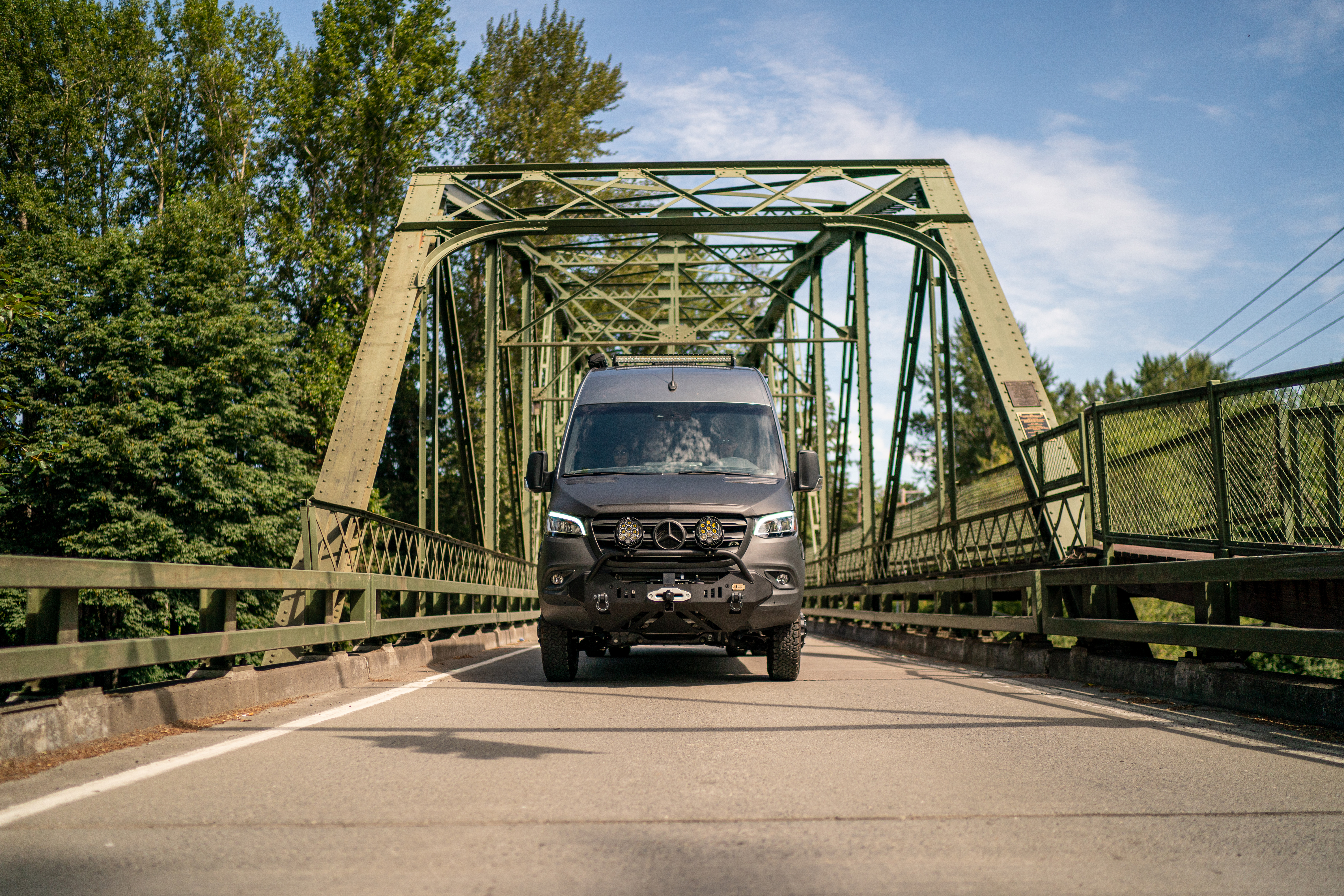

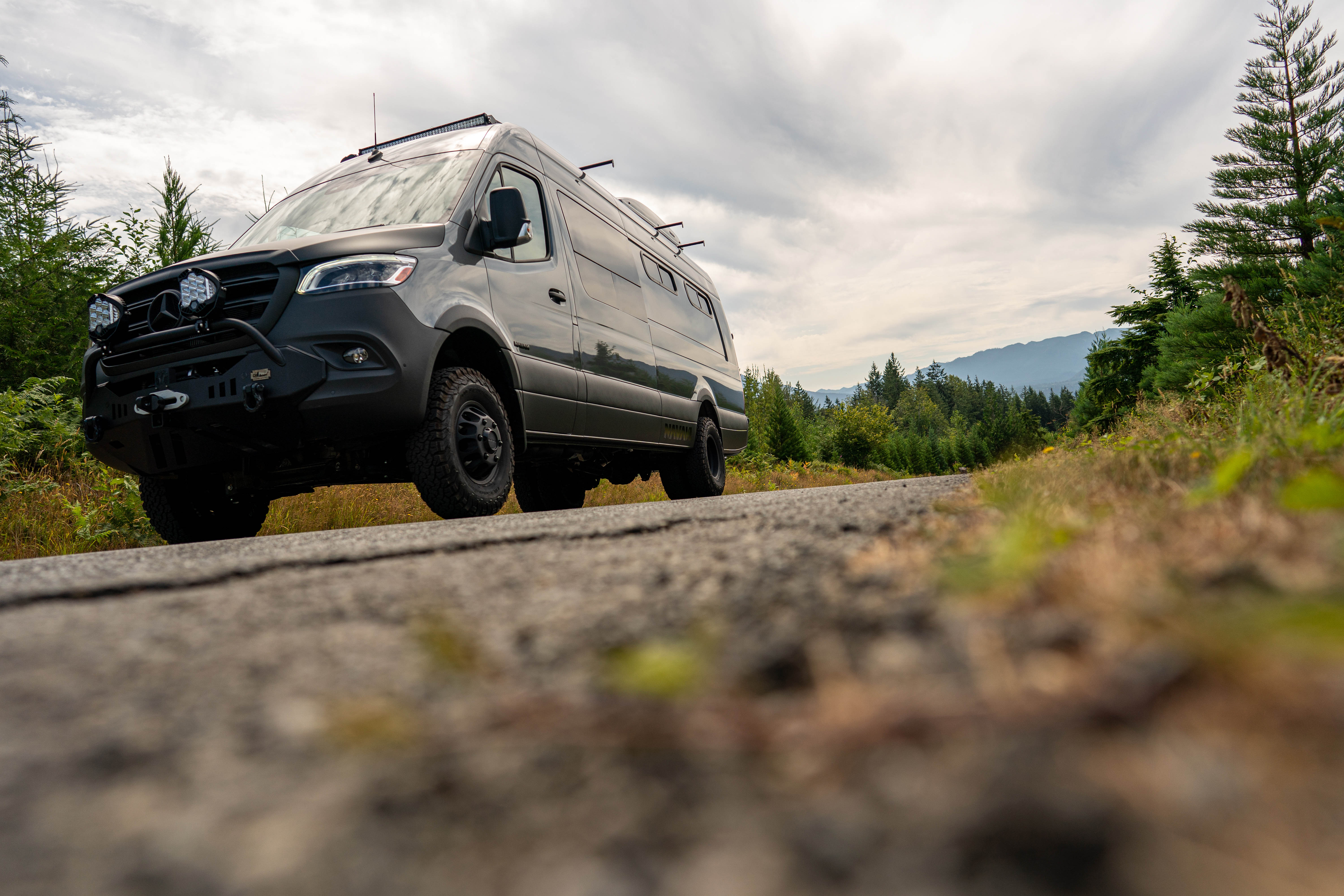

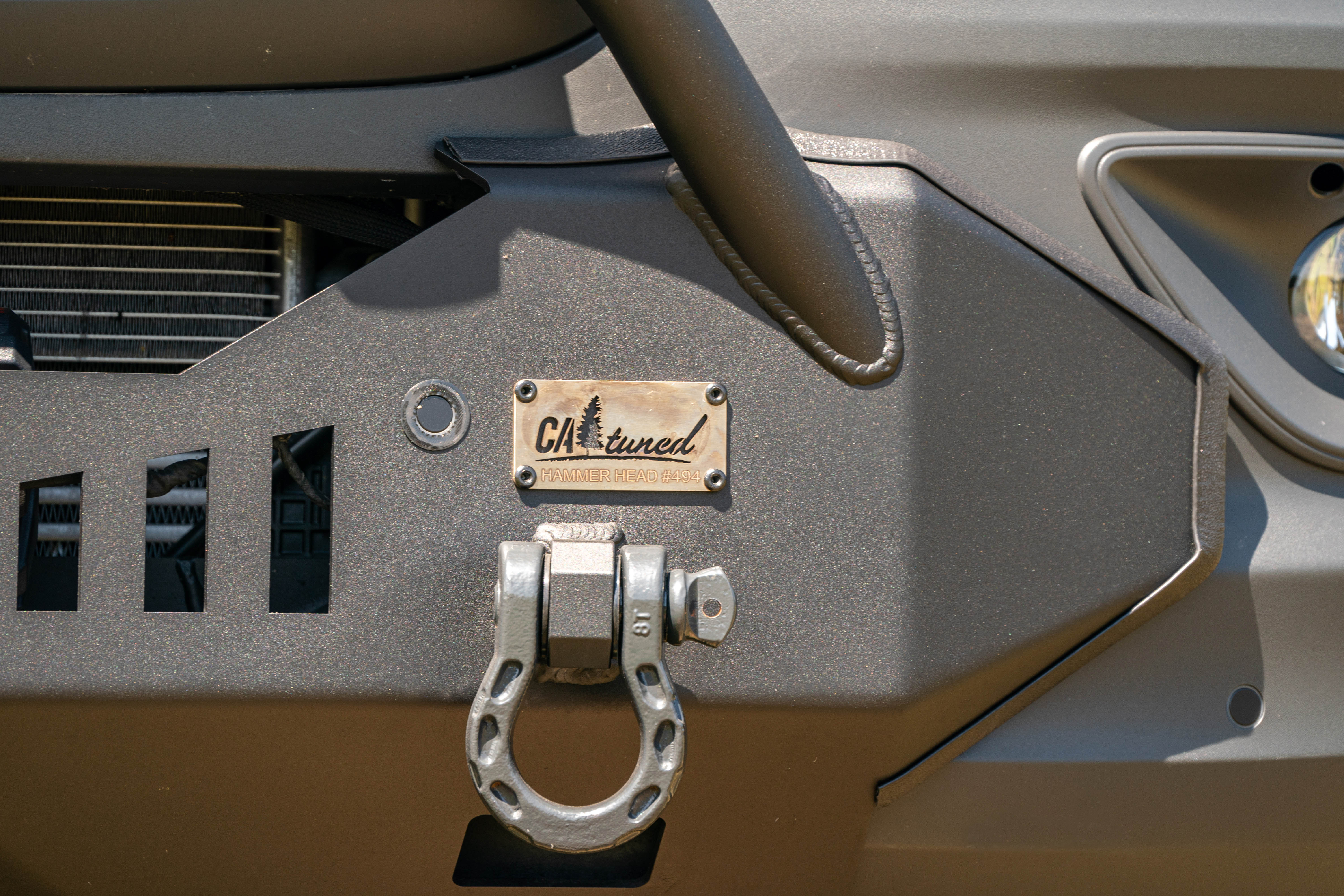

CAtuned brand front bumper with skid plate, shackle mounts, and 2 Baja Designs LP9 sport LEDs, driving combo.
Smitty Built winch 12,000lb with remote and synthetic rope.
Rear step bumper with hitch access.
Amp Research power step for slider door.
Extra-large Packasport rooftop storage box includes 4 solar panels built into the lid. Custom painted to match the van.
3 roof bars for additional storage.
Method Race 901 dually wheels (set of 4). with custom wheel caps.
KO2 tires: 235/85/16s E-Rated tire in the BFG All-Terrain.

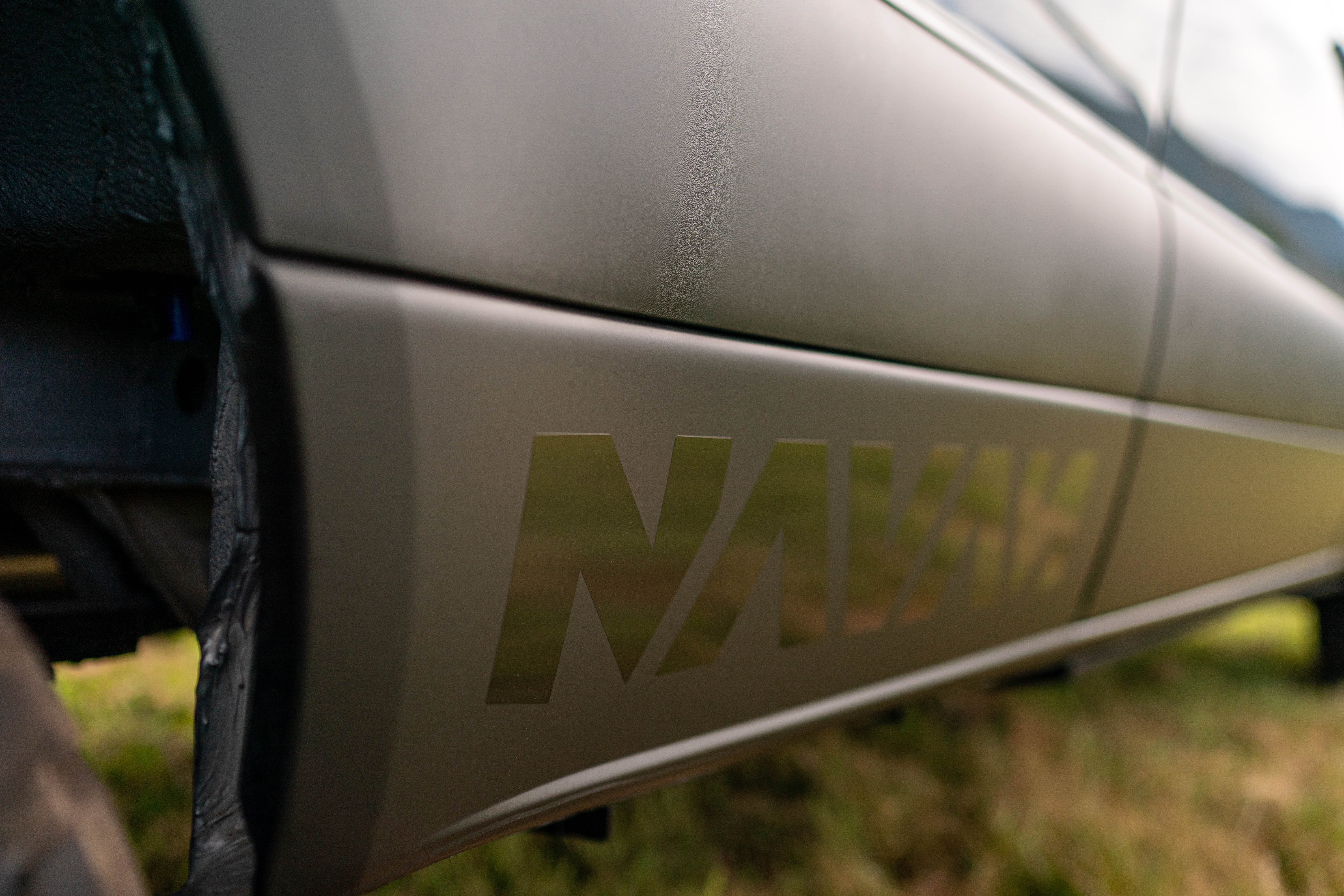

Rough road package. Includes vinyl wrap on hood, lower sides and back, hood spoiler & front fender covers.

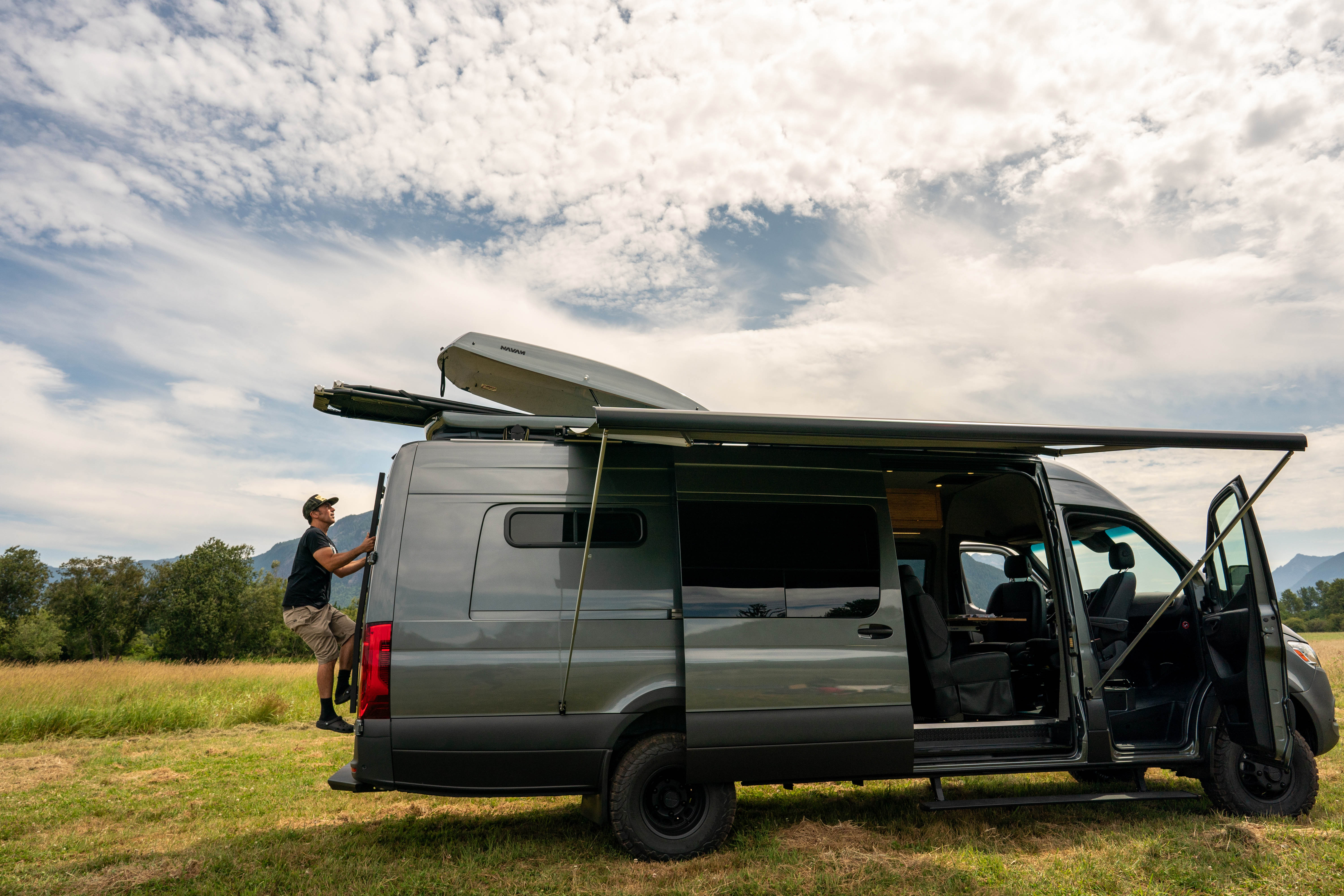

12’2” Fiamma awning.
Aluminum rear ladder.
Black-out package. Black front and rear MB emblems.
Roof light bar. 40", 250W double-row LED.

- see the inside -
- see add-ons -

- ADD-ONS -

Available Add-ons

Additional 24” bed panel with 6” extension (extends the main panel bed by an additional 30”)
Reclining leather captains chair with armrests.
Additional bar for more rooftop storage.
Headliner Shelf for additional interior storage.
Slide-out gear tray with recessed Mac’s track, 2 custom bike attachment modules equipped with 2 Rocky Mountain thru-axle bike mounts. Also works great for snowboards/skis or anything else you want quick and easy access to things stored under the panel bed. This item is fully removable.
2 sets snowboard/ski vertical storage racks.
Removable end table/storage cabinet (to the right of the galley). Includes Lagun brand table that is fully removable and stows out of sight.
