—sold—

STONEY

STONEY

Premium built, with all the versatility you need in a single van. Seats 3 as configured with the option to add an additional captain's chair if you choose. There are plenty of sleeping options, comes with 2 carbon fiber bunks and a large panel bed. The galley is designed and crafted with solid bamboo cabinetry, stainless steel fridge, induction cooktop, microwave and a hot water sink.

Built and designed full of all the right creature comforts featuring On-demand Diesel Water/Cabin Heater, hot water shower, high-powered inverter (for your 110v goodies).

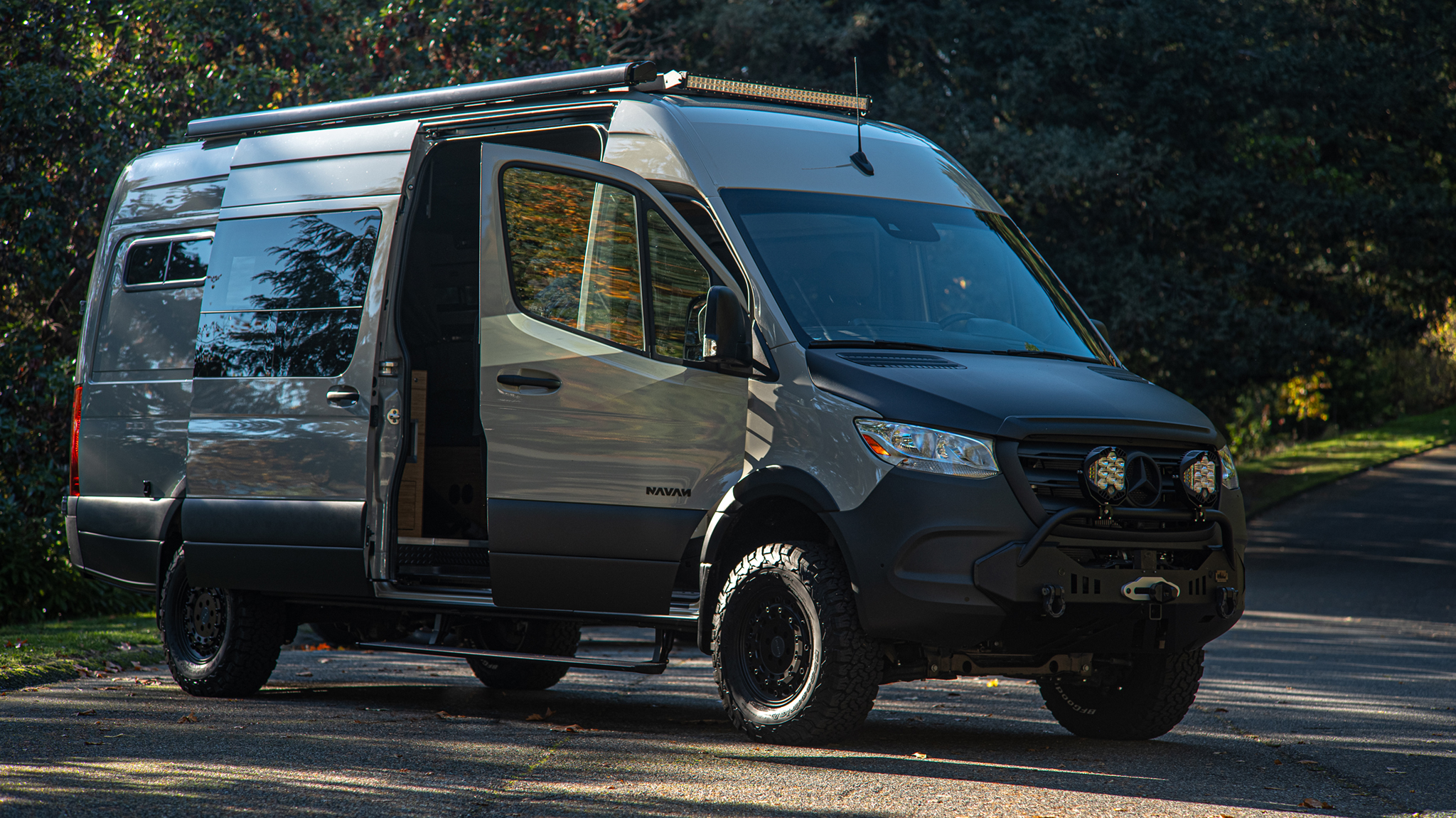

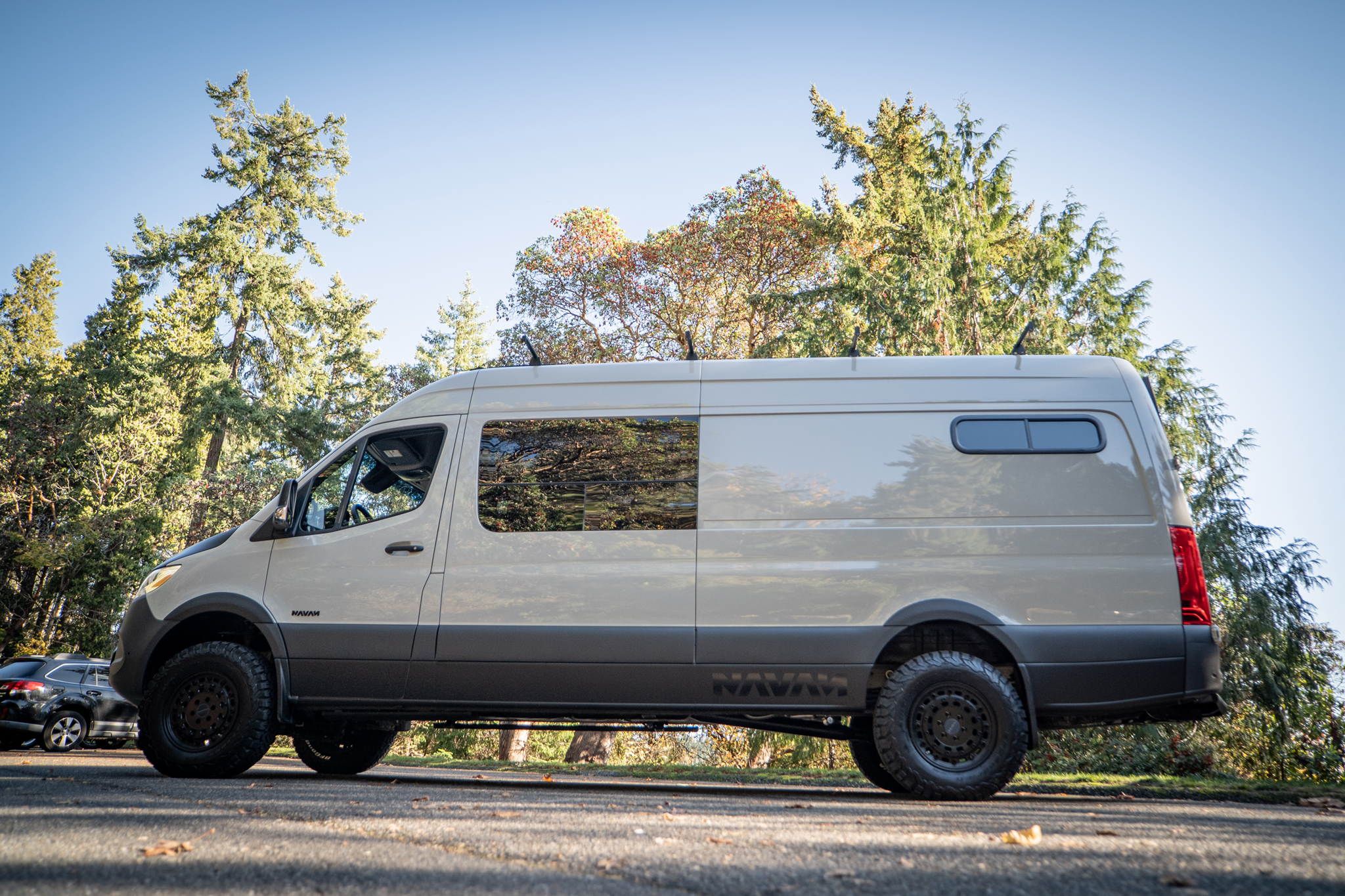

2020 Mercedes Benz Sprinter High Roof

Drive: 4WD
Wheelbase: 170
Color: Stone Grey
Status: SOLD
Mileage: 65 Single Miles

Layout

Our intuitive attachment systems make it easy to swap out components to suit any adventure you choose.

- INSIDE -

  • Full coverage sound deadening material throughout. The floor is made with 19mm marine-grade plywood topped with commercial-grade Lonseal vinyl. The cabin is insulated with 3M Thinsulate and closed-cell foam.
  • Galley, seat bench and upper cabinets are made of solid 19mm Higuera bamboo. Marine-grade quality drawer pull latches throughout, Blum soft close hinges on the uppers and seat bench cushions are made of premium, easy to clean Sunbrella fabric.

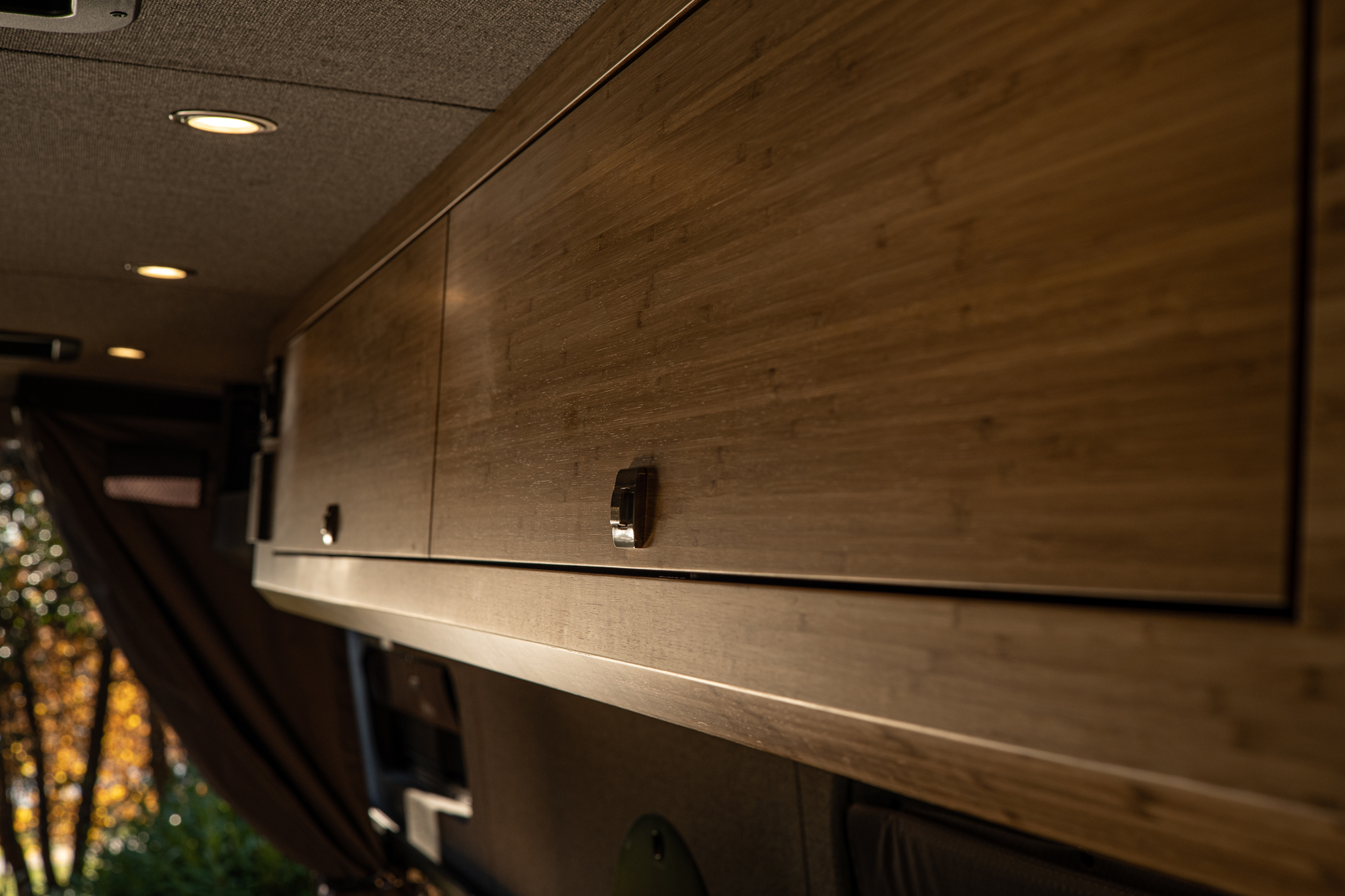

  • 90” solid bamboo upper cabinet.
  • Custom aluminum gear rack upper. Mesh sides and bottom for breathability and Mac buttons for universal hanging storage.
  • Removable panel bed system.

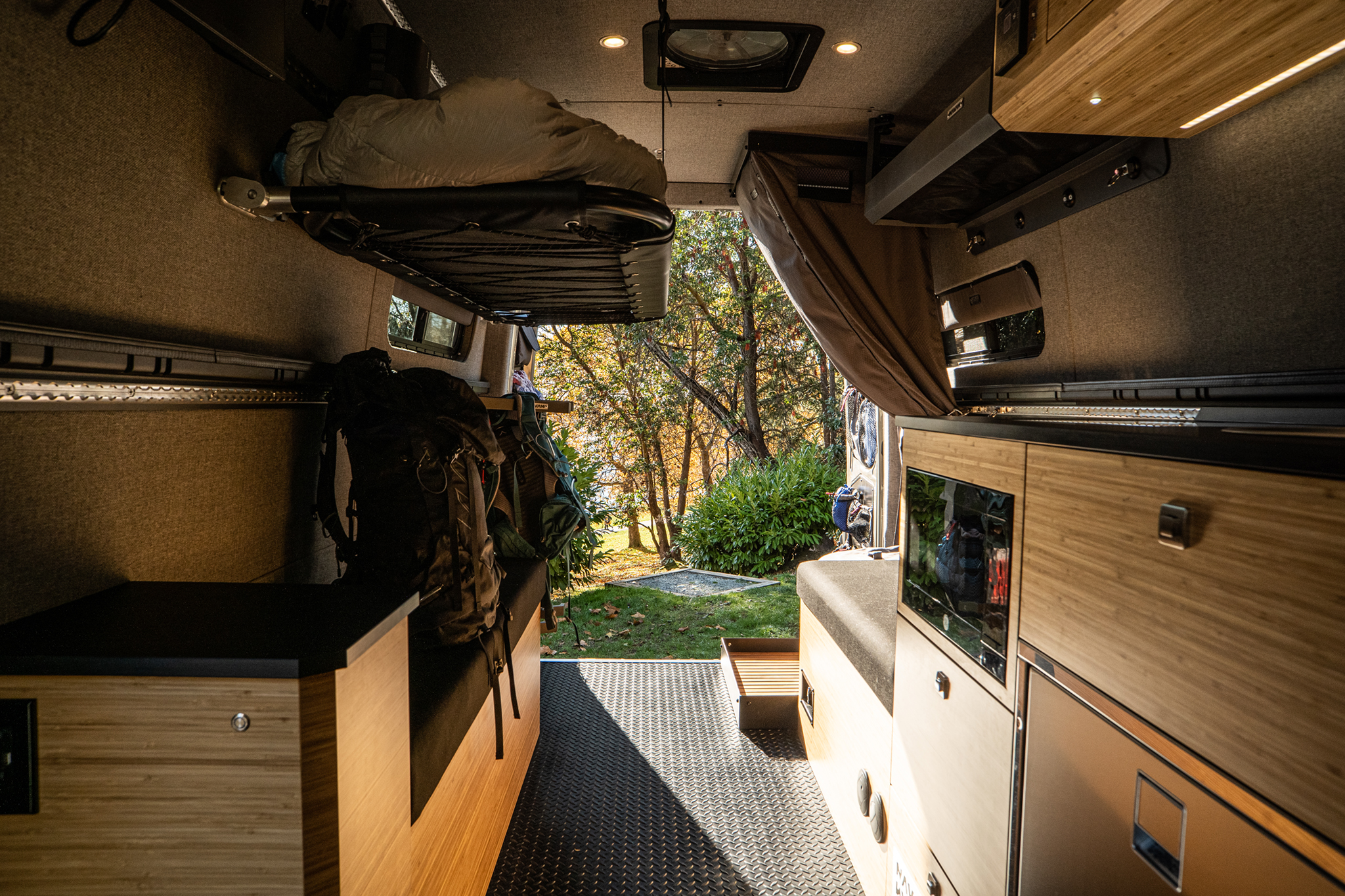

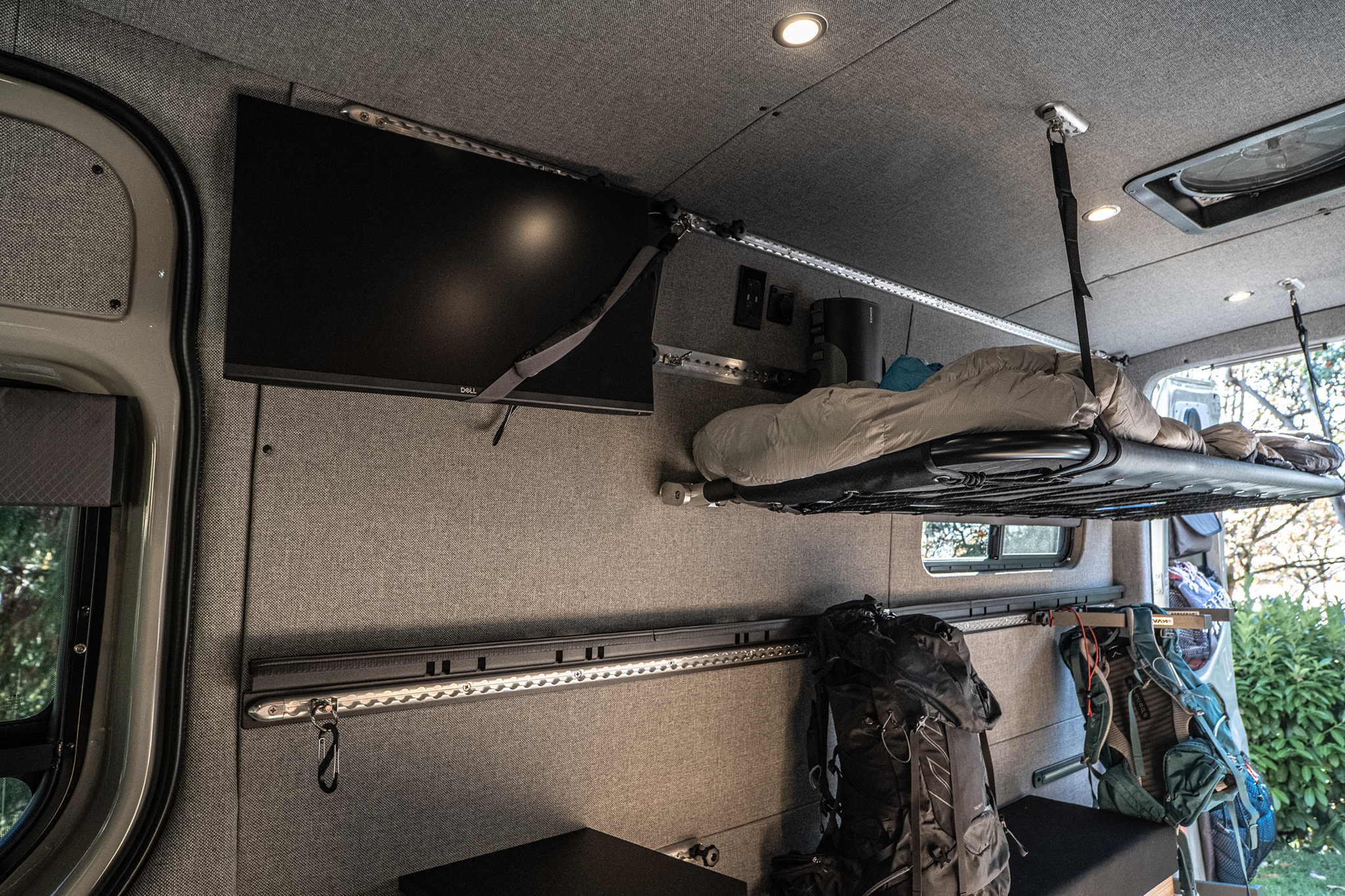

  • 2 carbon fiber and aluminum bunks are fully detachable and can be stowed in various locations.
  • Removable end table/storage cabinet (to the right of the galley). Includes Lagun brand table made of solid bamboo, it is fully removable and stows out of sight.

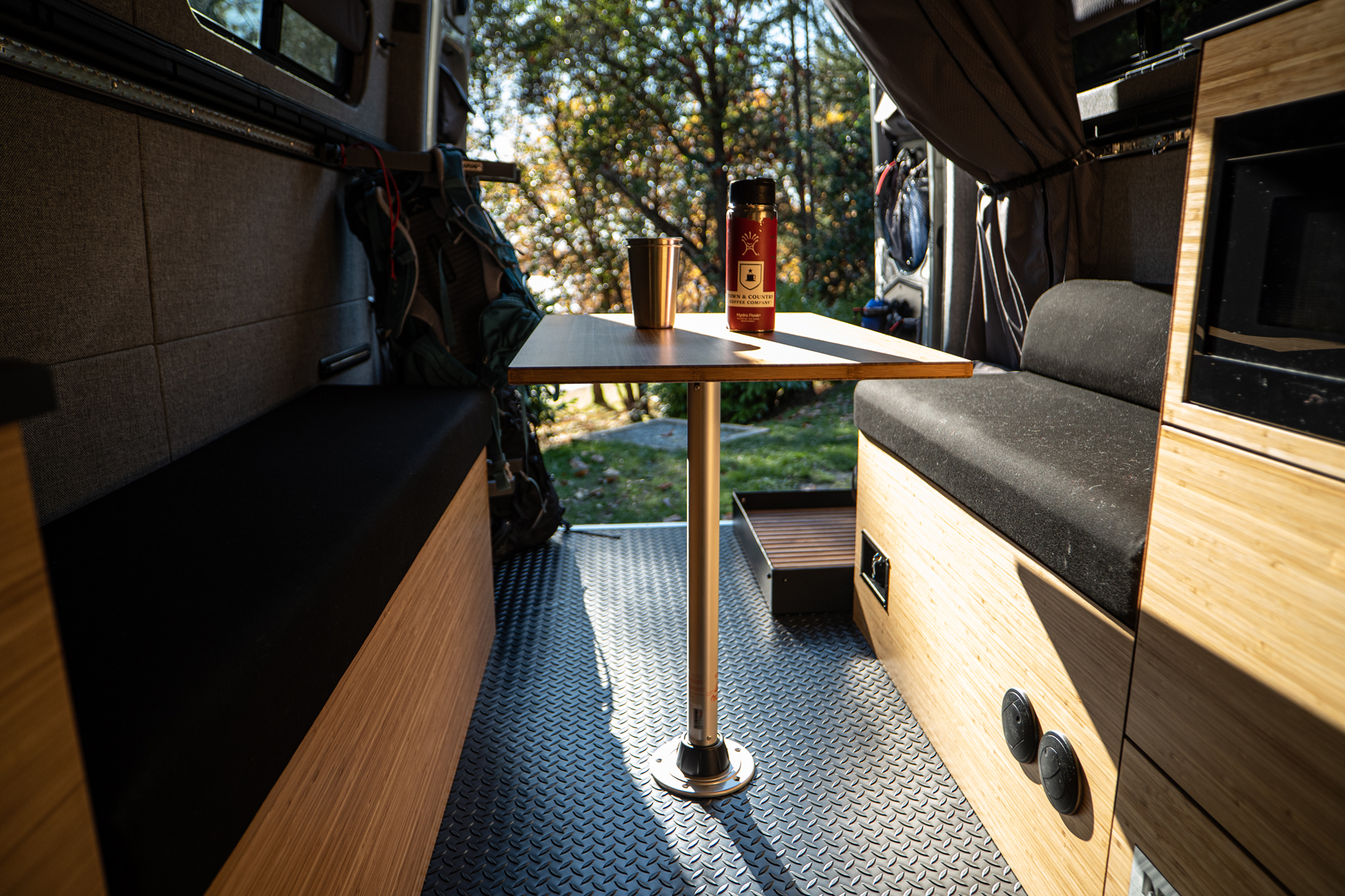

  • 2 removable pedestal tables (front and rear).

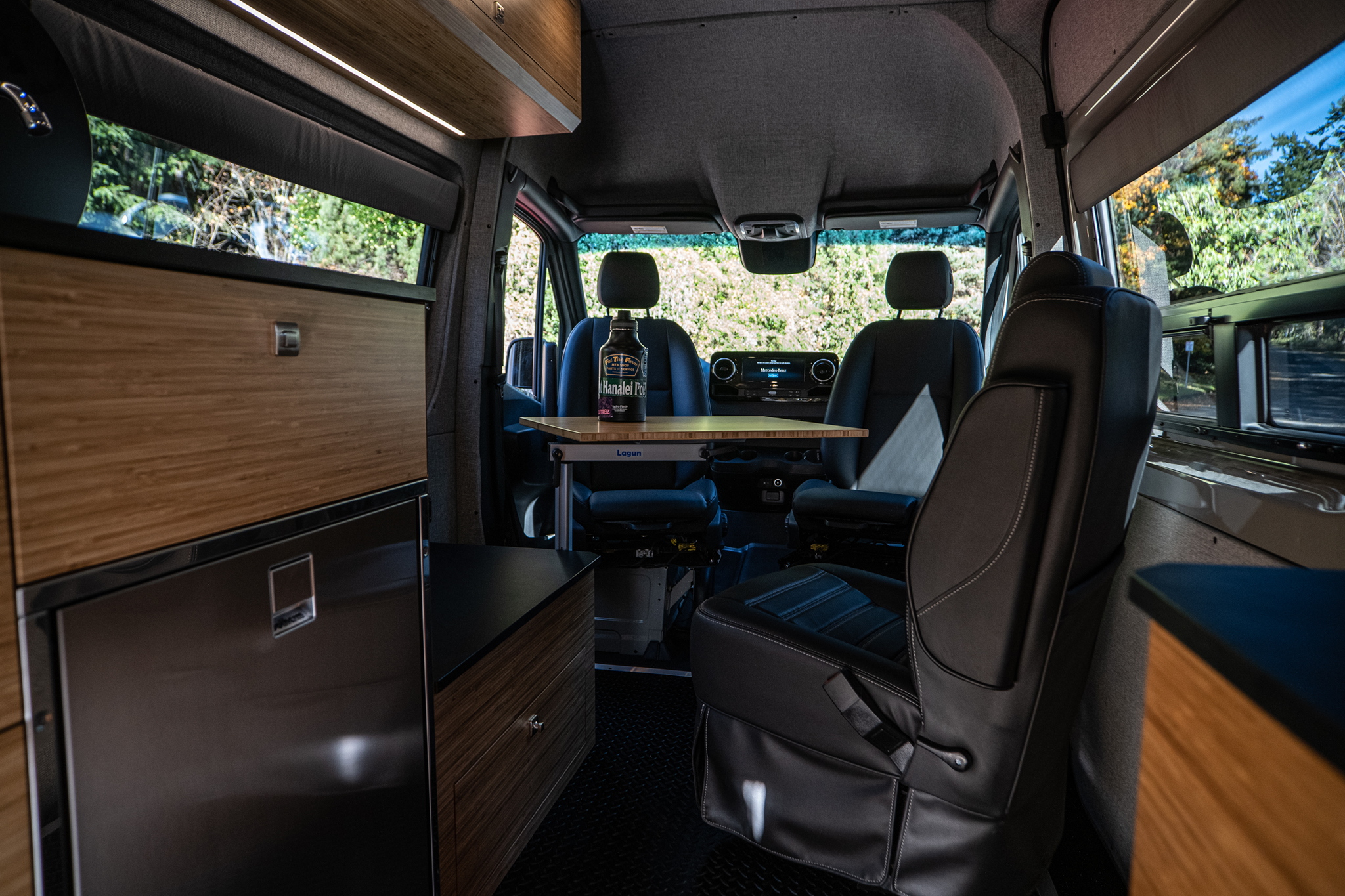

  • 2 Luftcraft Fabrication seat swivels.
  • 2 Mac Track floor track strips with covers.
  • 2 Maxx Fan rooftop vents with remotes.

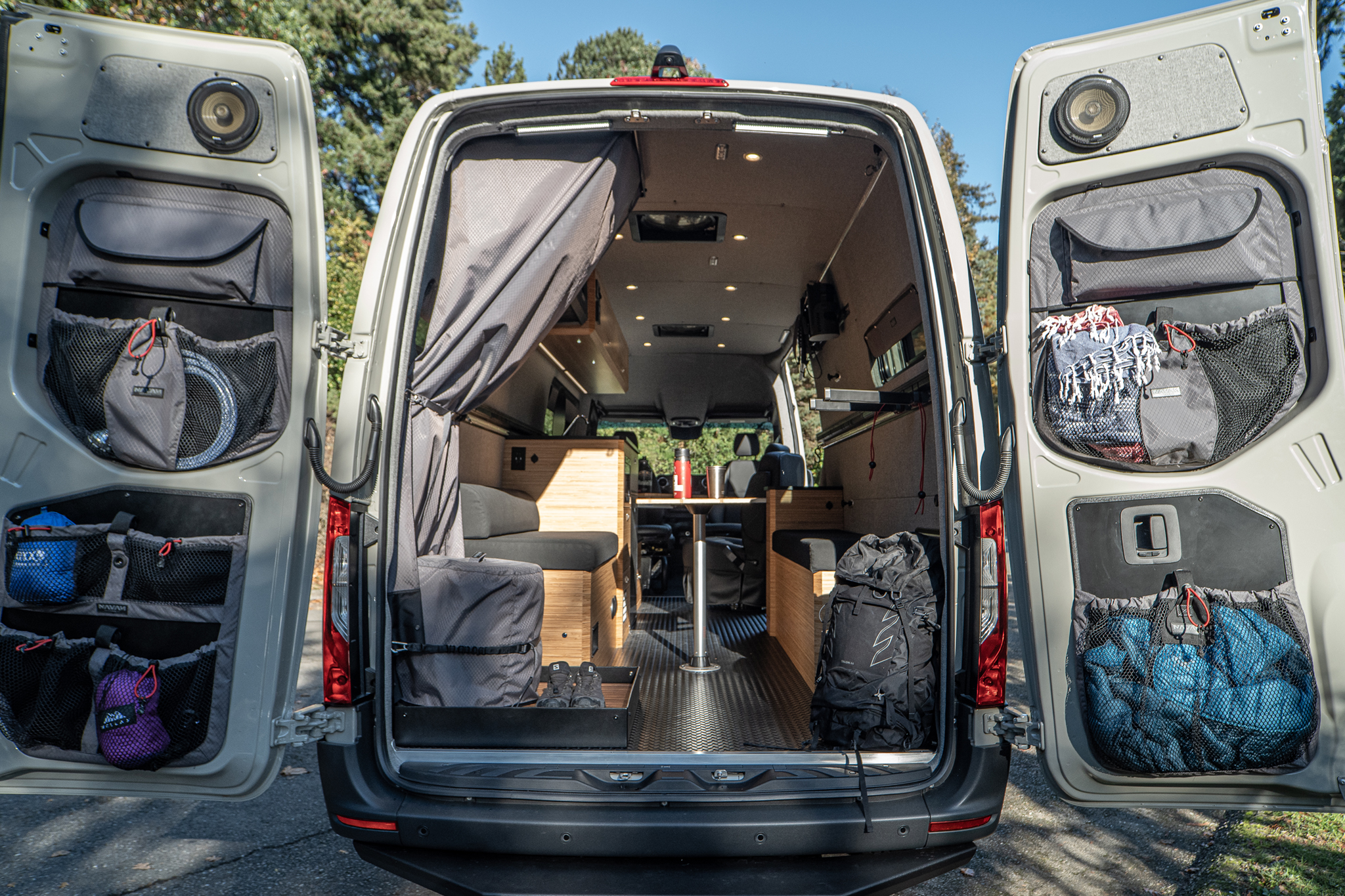

  • 4 Rear Armor door panels with storage (2 upper and 2 lower).
  • Black-out privacy package. 7-piece closed cell foam-filled coverings insulate all windows and fan vents fan. Helps to keep the light out (or in) and control cabin temps. They roll-up and snap-up or bundle together for easy storage.

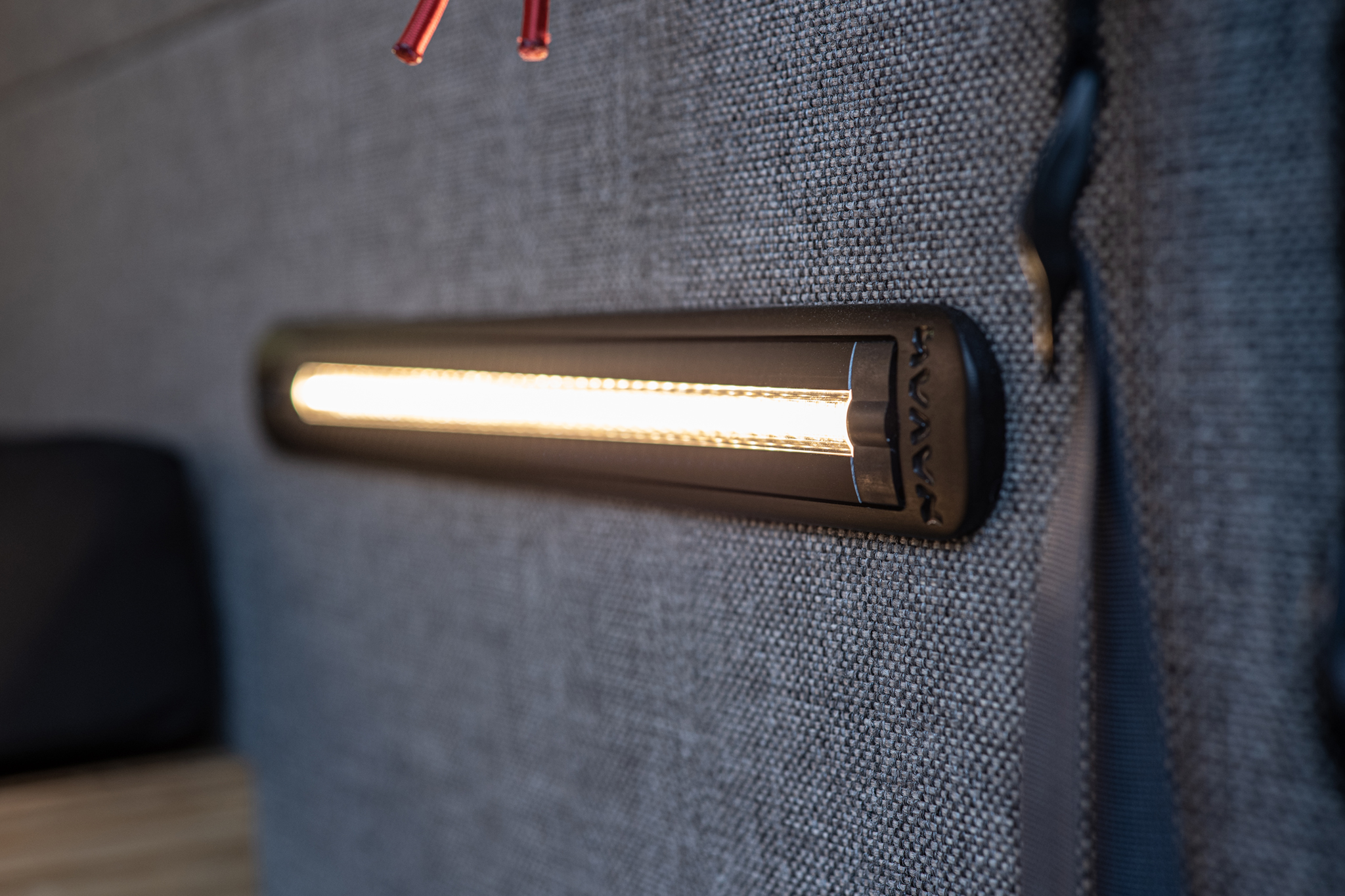

  • Lighting. Two circuits with on/off switches in multiple locations. 10 ceiling lights and 2 under cabinet spots and 2 gear cubby spots. A single LED under the bed plus two high-powered (low draw) load lights out the back for loading/unloading gear in the dark. One under-bed gear LED strip light.

Configurations to suit your life

Pana1756
Pana1759
Pana1763
Pana1773
Pana1775
Pana1777
Pana1783
Pana1791
Pana1795
Pana1806
Pana1824
Pana1829
Pana1835
Pana1862
Pana1866
Pana1840

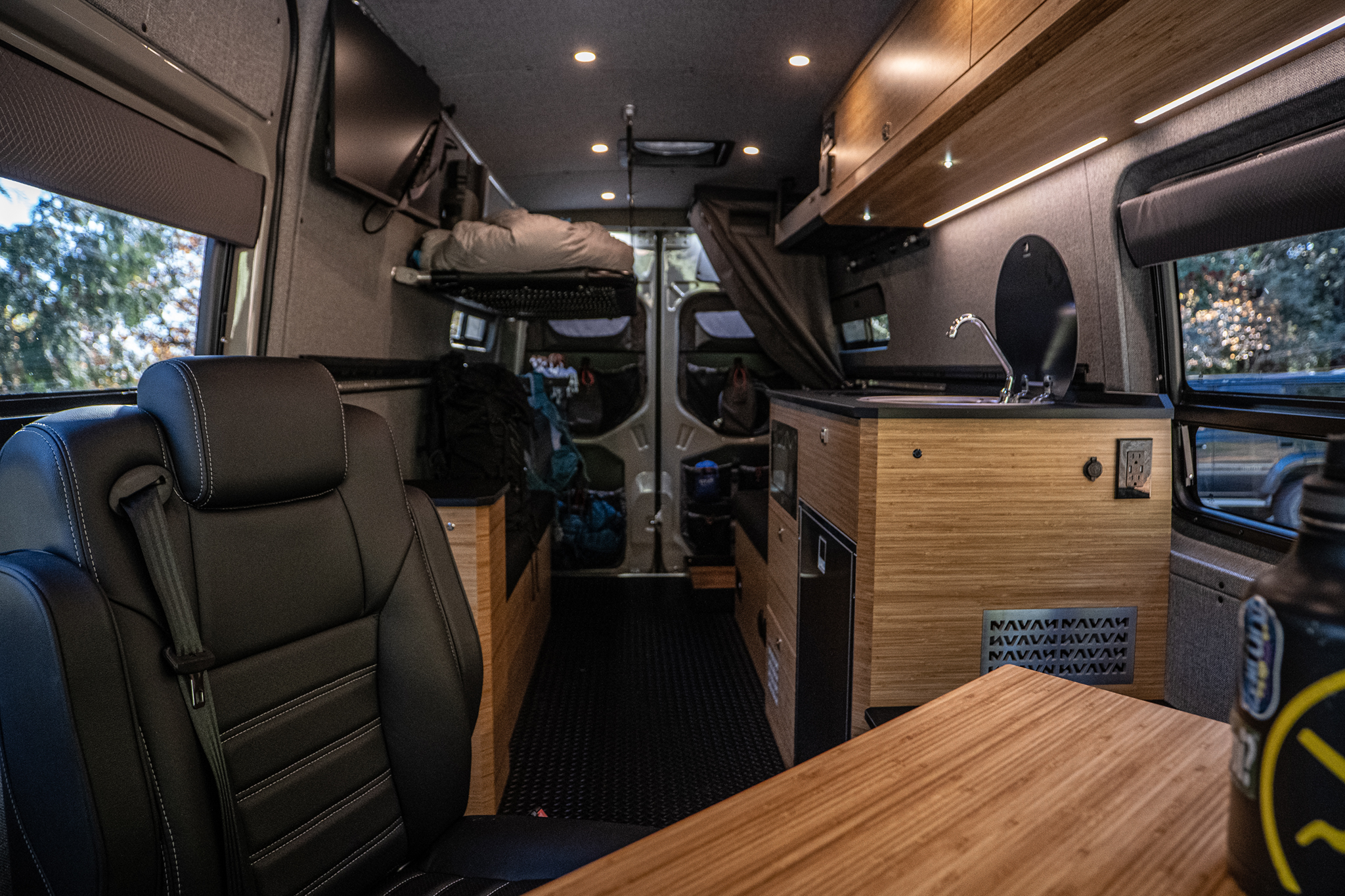

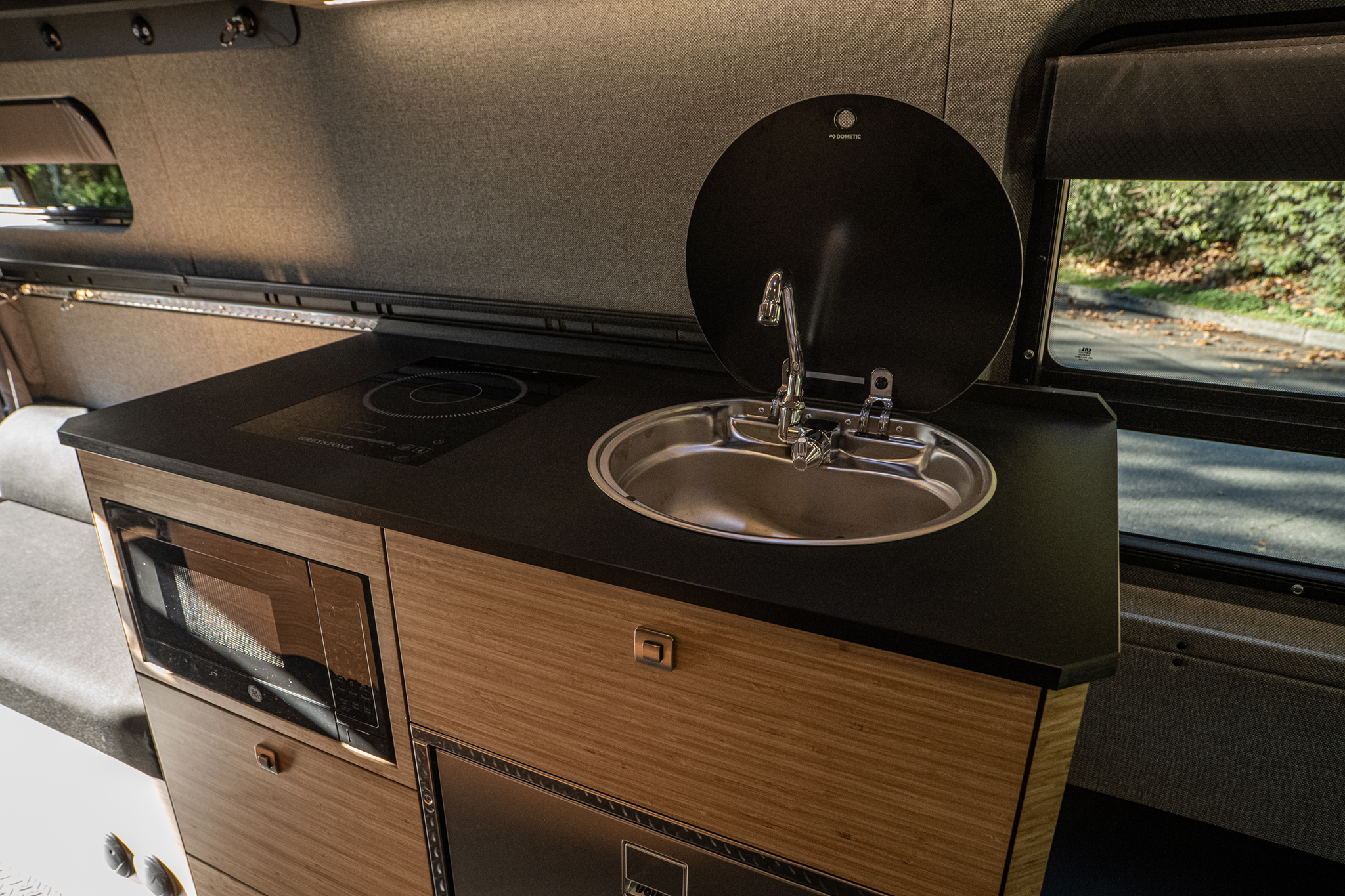

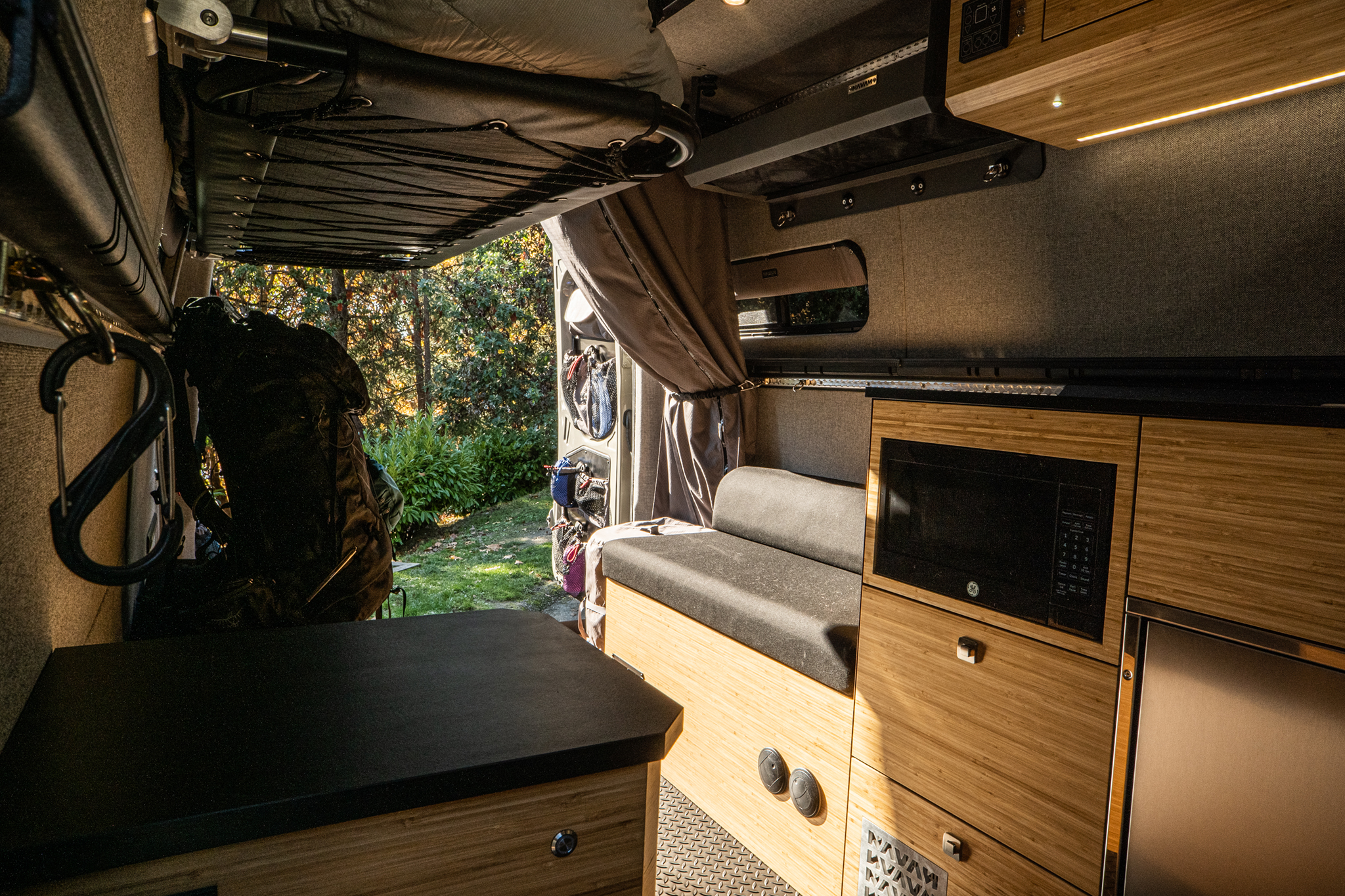

Full Galley

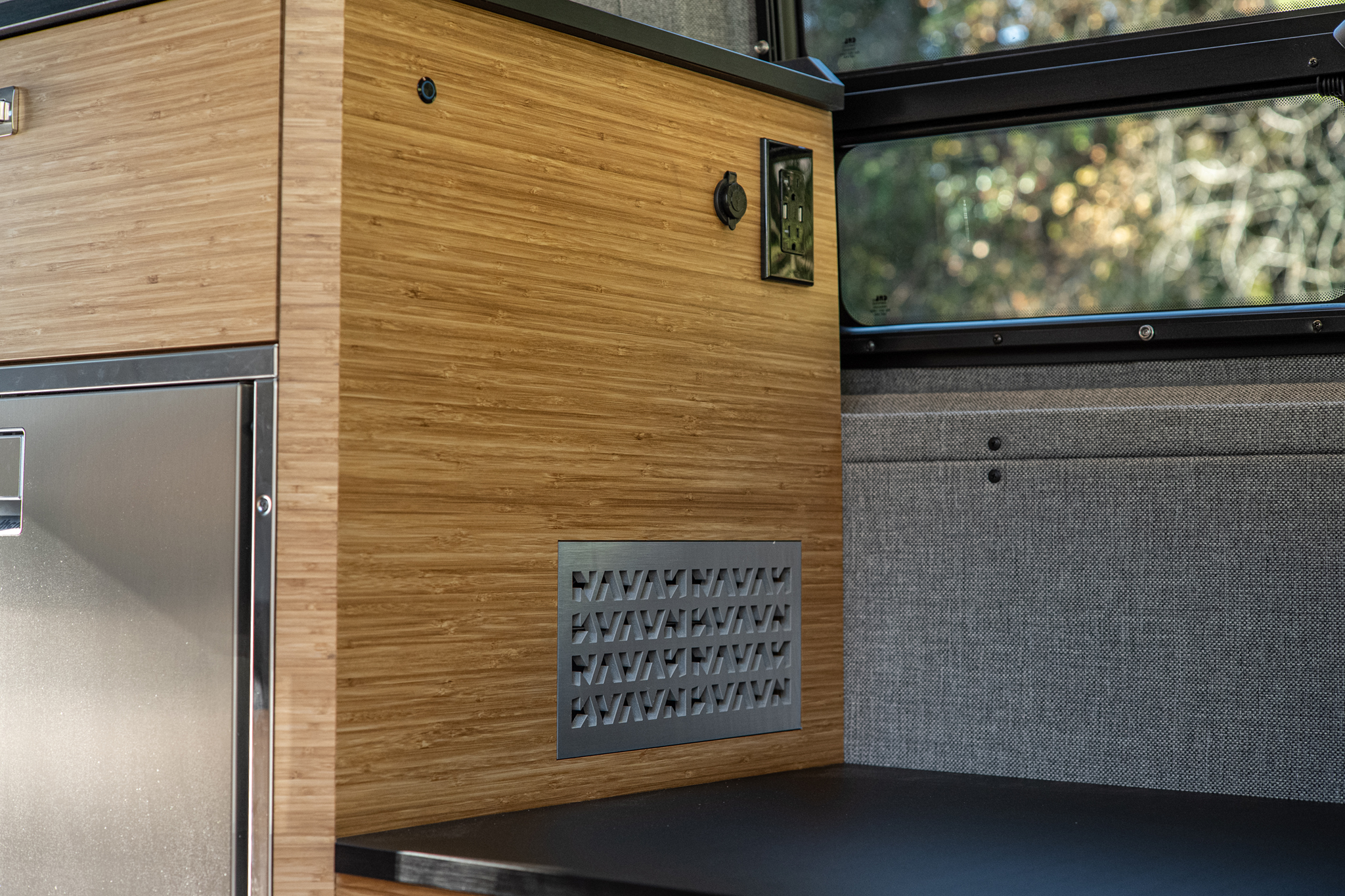

  • Isotherm stainless steel refrigerator/freezer
  • GE microwave
  • Induction cooktop
  • Hot/cold water sink with lid

Comfort Systems

  • On-demand diesel water/cabin heater
  • Fresh hot/cold water system with 20-gallon ‘easy clean’ water tank

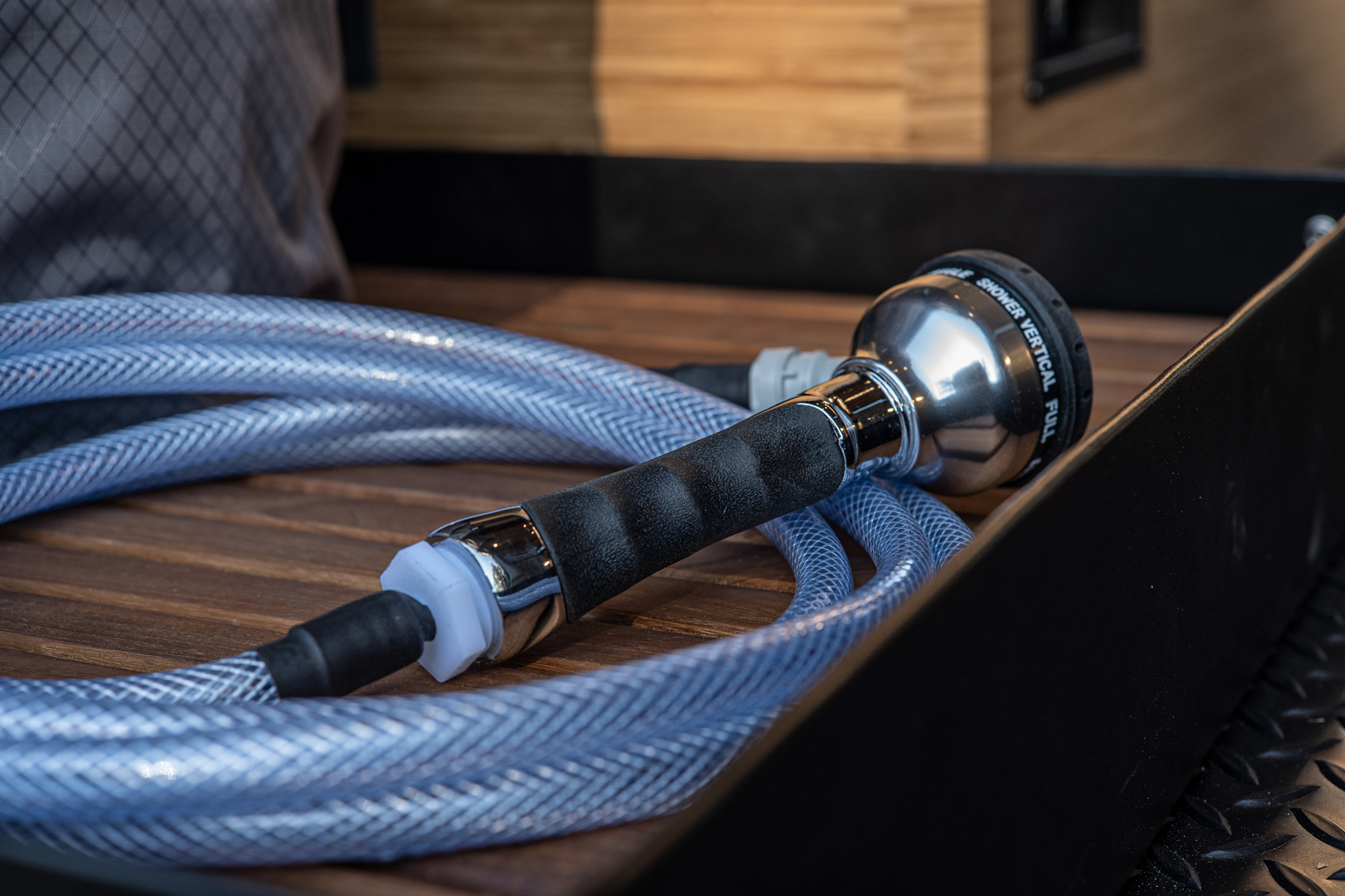

  • Warm water shower with completely removable shower pan with teak floormat. Includes custom removable upper shower housing and shower enclosure with waterproof YKK zipper
  • Thetford Curve portable toilet with electric flush and custom cover

Power & Solar System

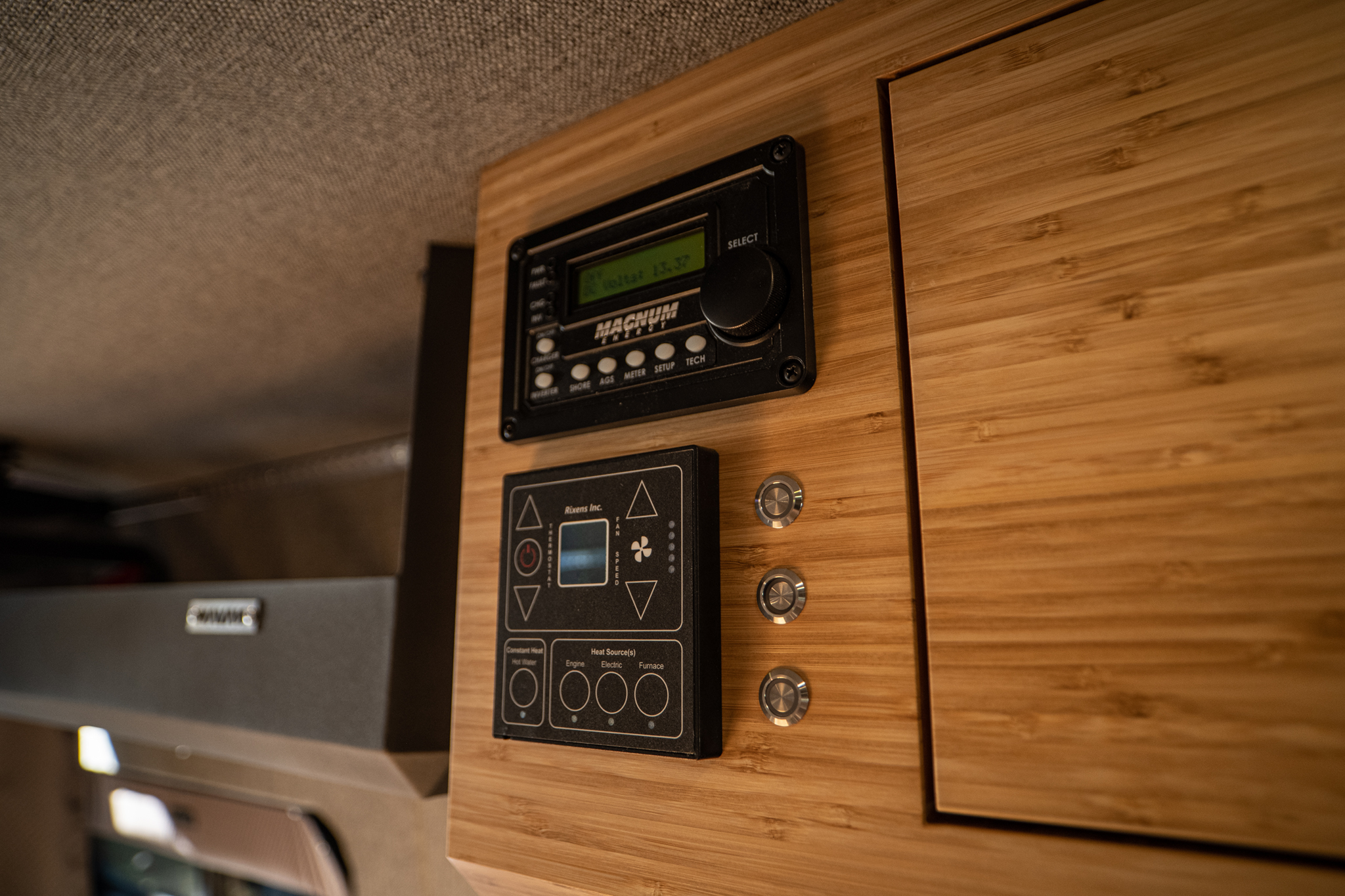

  • Magnum Energy 2000 watt Inverter for 110v power supply. Two 110volt receptacles and 5 double USB ports
  • 3 Relion RB100-LT self-heated lithium batteries, 100ah each for a total of 300amp hours
  • 3 solar panels totaling 260 watts
  • Convenient momentary switching. Cabin, spotlights, and water pumps can be turned on/off from multiple locations

Premium Sound System

  • Mercedes Benz proprietary Mbux Multimedia system with 10.25” screen
  • Alpine amplifier PDX-V9 100W x 4 and 500W x 1
  • 8 speaker system including 8” Subwoofer

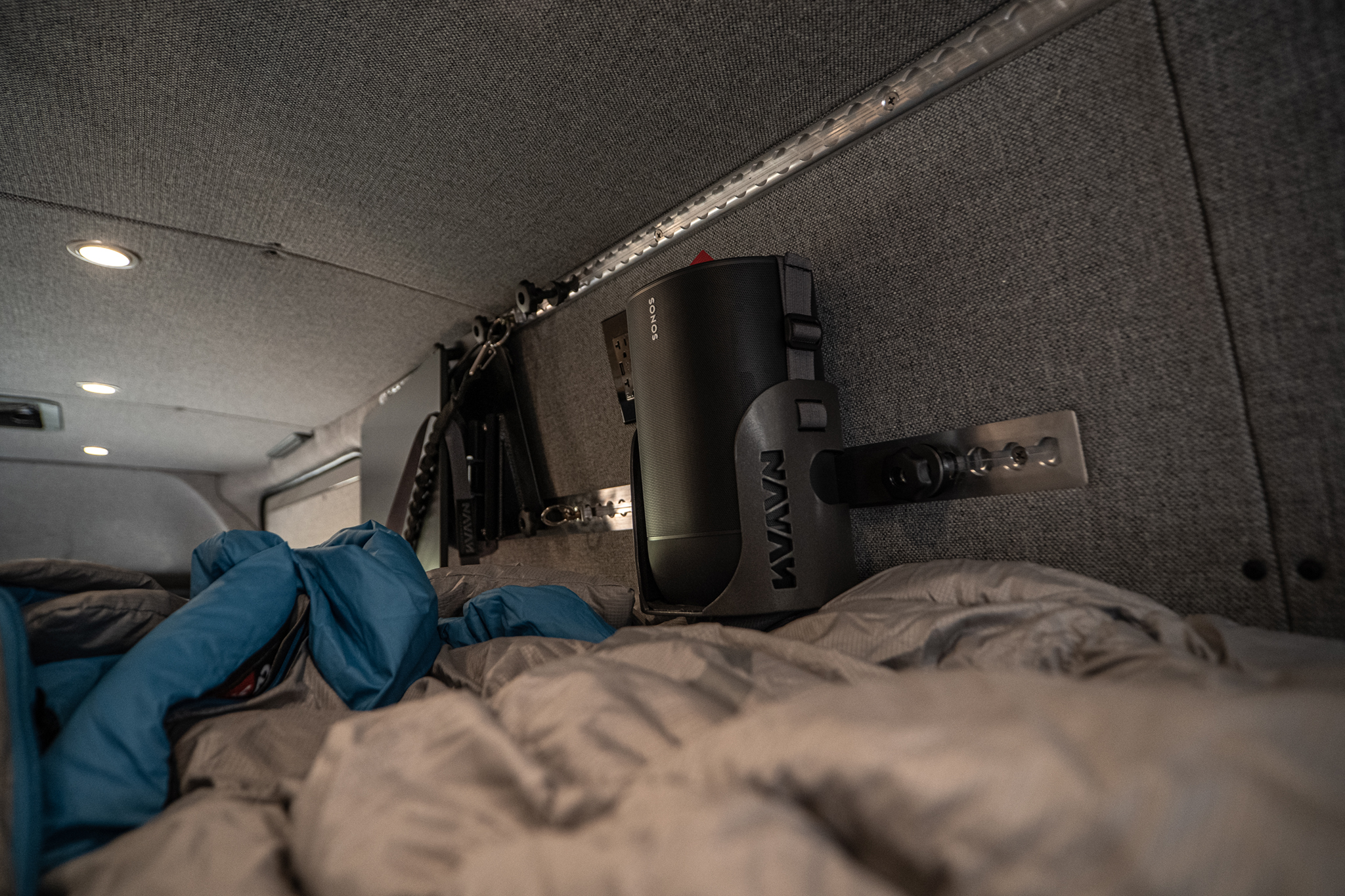

  • Sonos MOVE portable Bluetooth speaker with custom mounting bracket

Gear Storage and Air Compressor

  • Mac’s custom tie-down cargo track and buttons throughout walls and floor

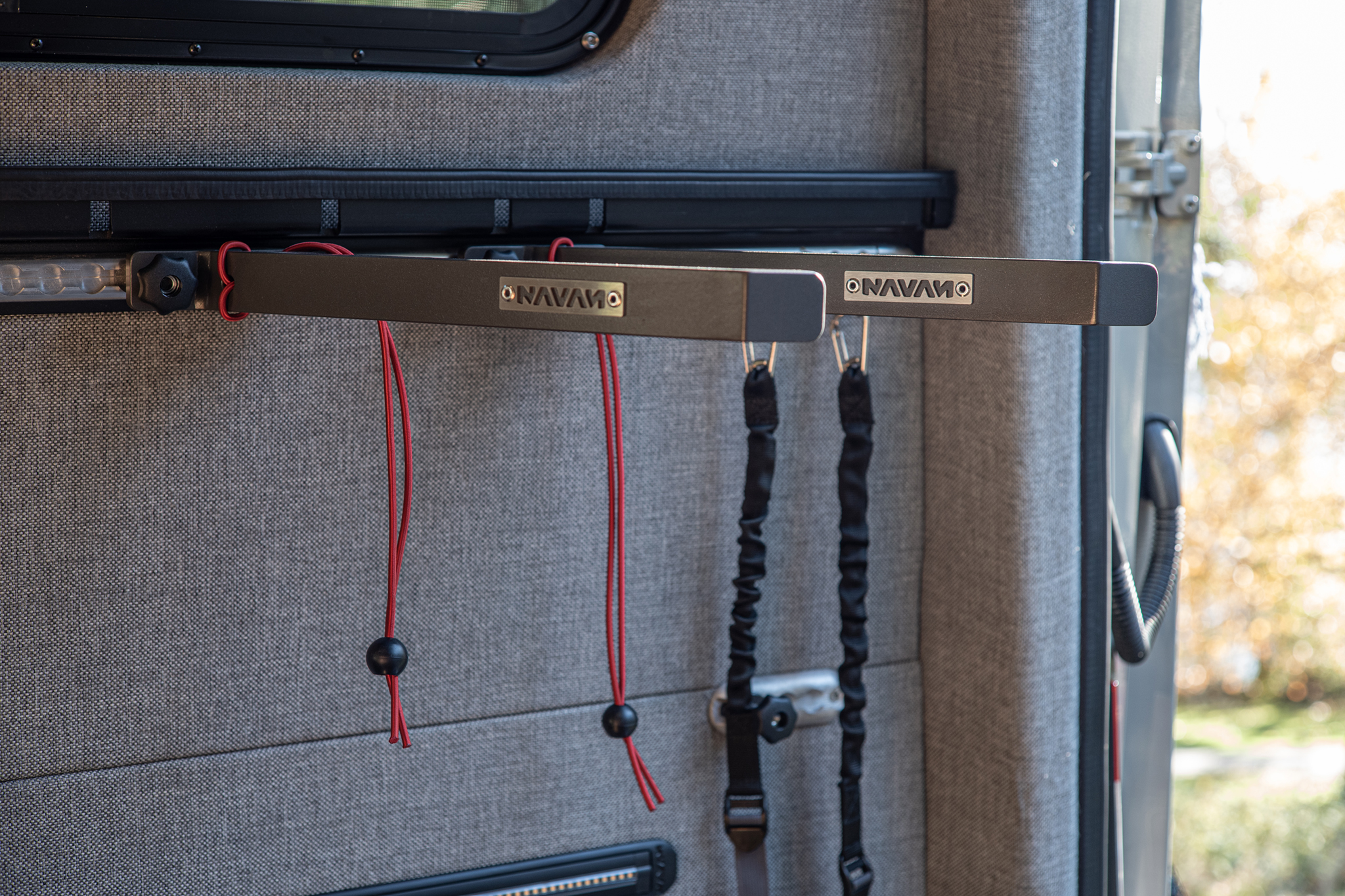

  • 8 custom gear hold-down straps

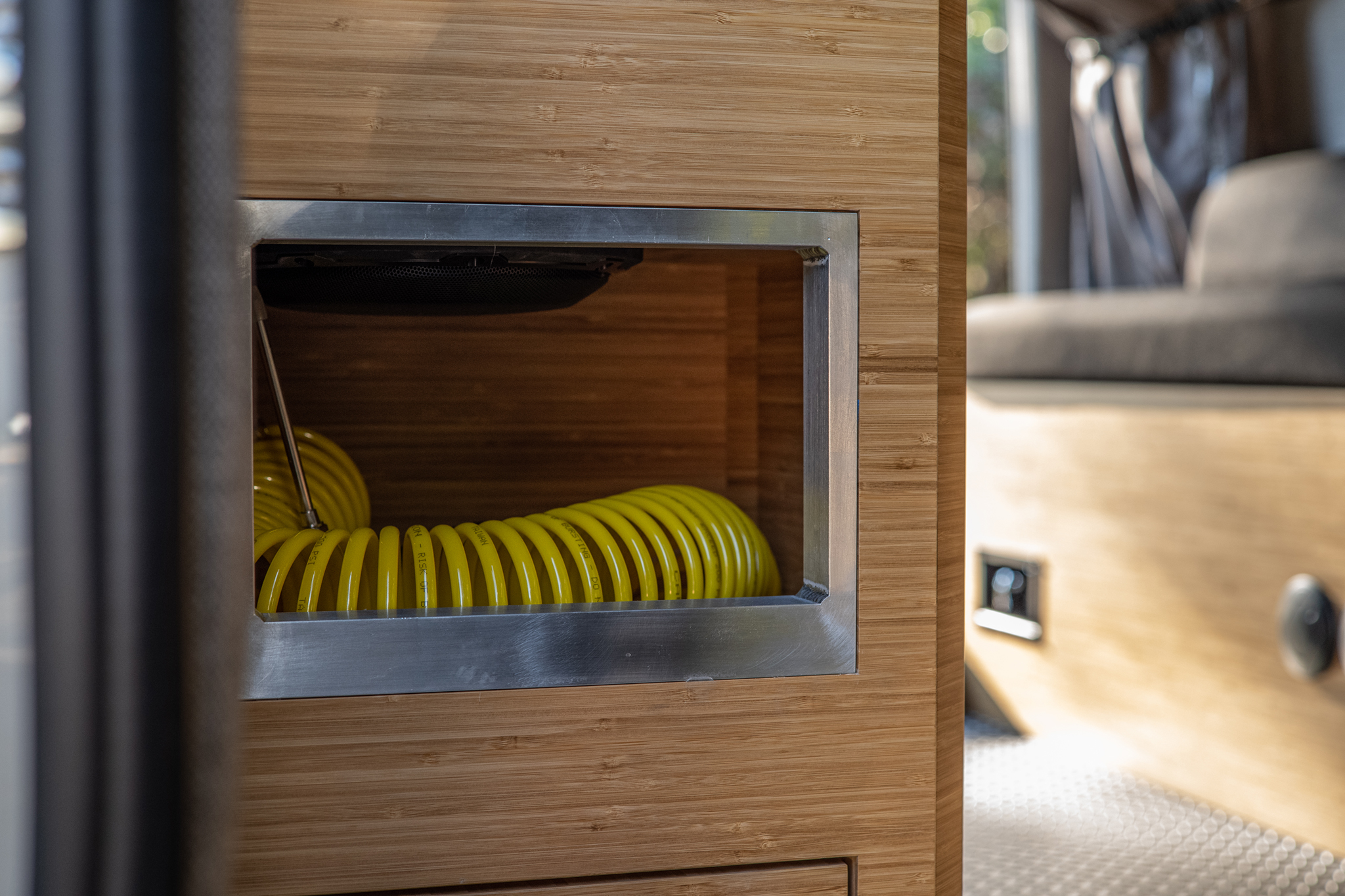

  • Viair onboard air compressor with 2.5-gallon tank in a custom bamboo cubby. Great for airing back up after beach driving, Inflating bike tires, SUP’s or simply cleaning out the van

- see the outside -
- see add-ons -

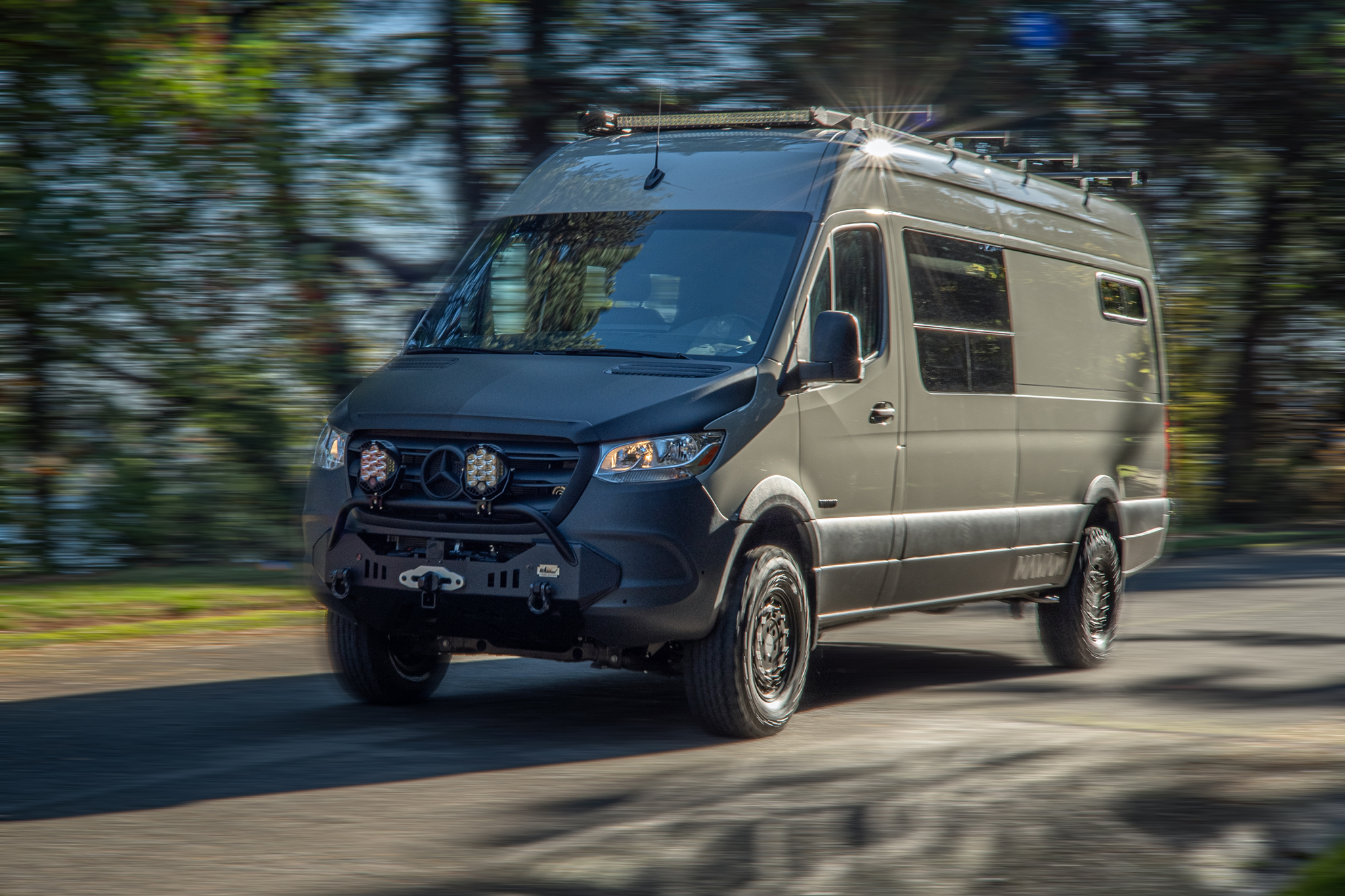

- OUTSIDE -

  • Custom suspension package for a smooth, stable ride: Stage 4 front and rear by Van Compass with adjustable rear shocks

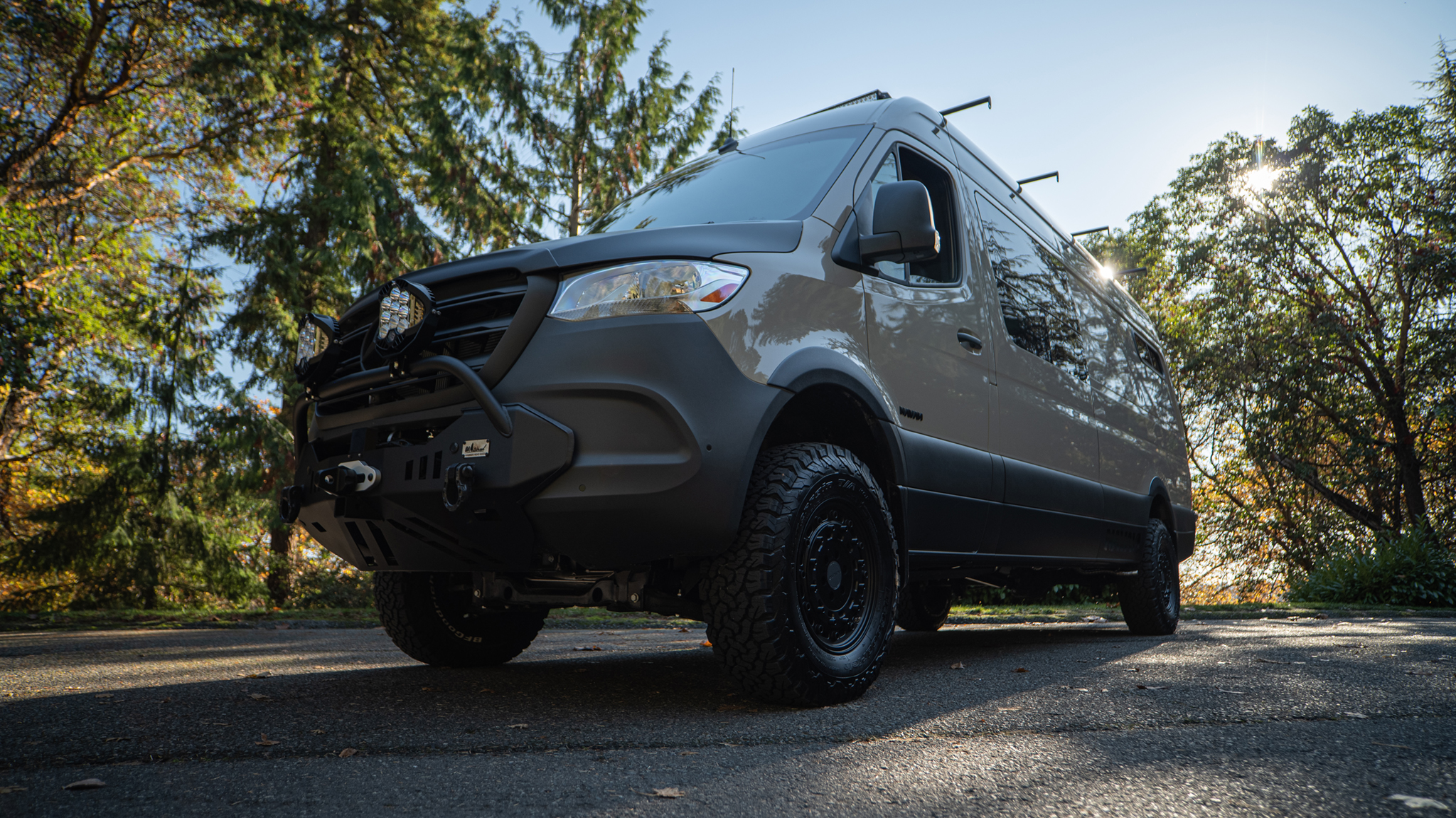

  • CAtuned brand front bumper with skid plate, shackle mounts, and 2 Baja Designs LP9 Sport LEDs
  • Smitty Built Winch 12,000 lb with remote and synthetic rope
  • Rear step bumper with hitch access
  • Amp Research power step for slider door
  • 4 roof bars for additional storage

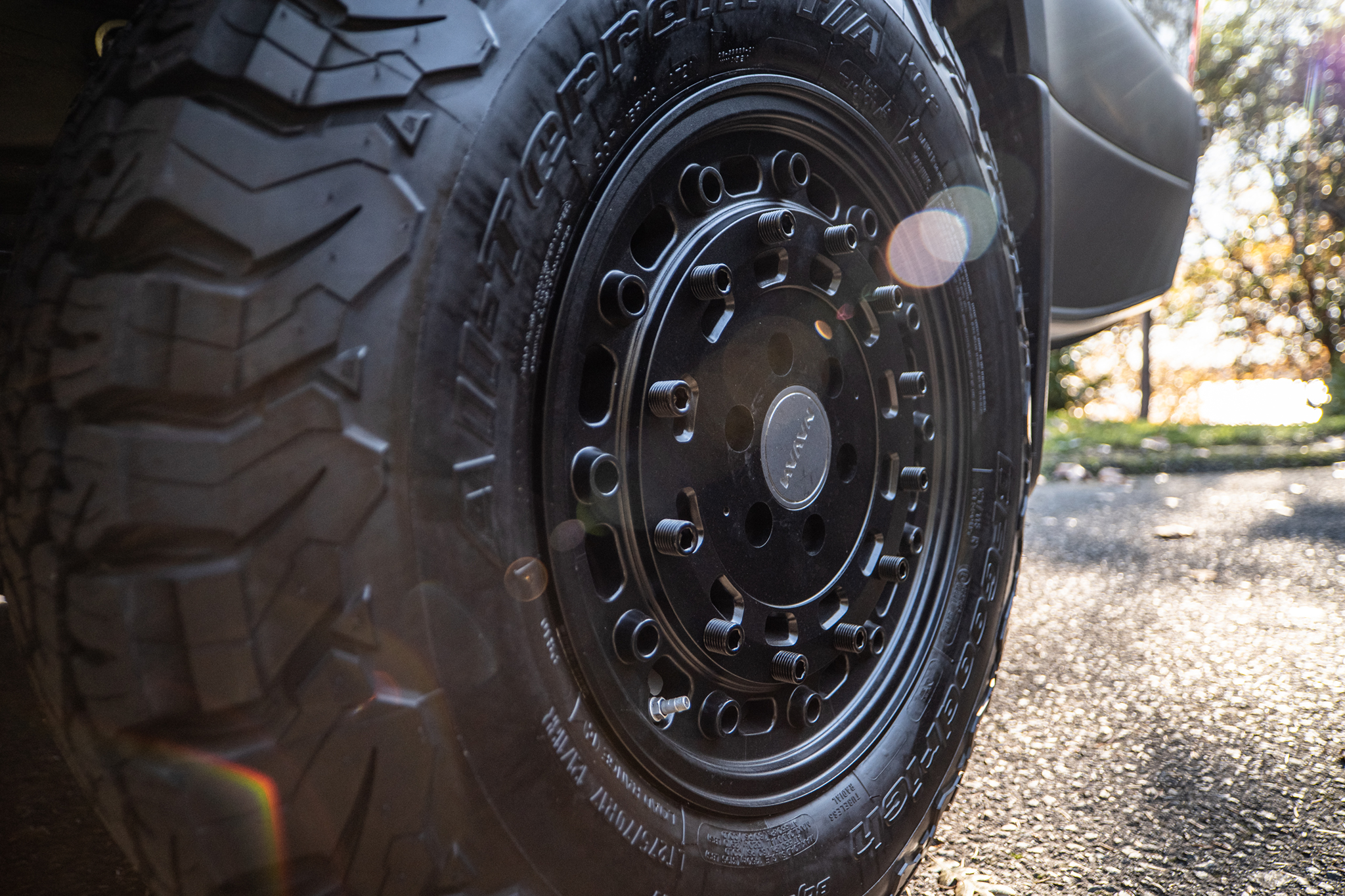

  • Black Rhino wheels with custom center caps and BFG KO2 tires
  • Rough road package includes vinyl wrap on hood, lower sides and back, hood spoiler & front fender covers
  • 12’2” Fiamma awning

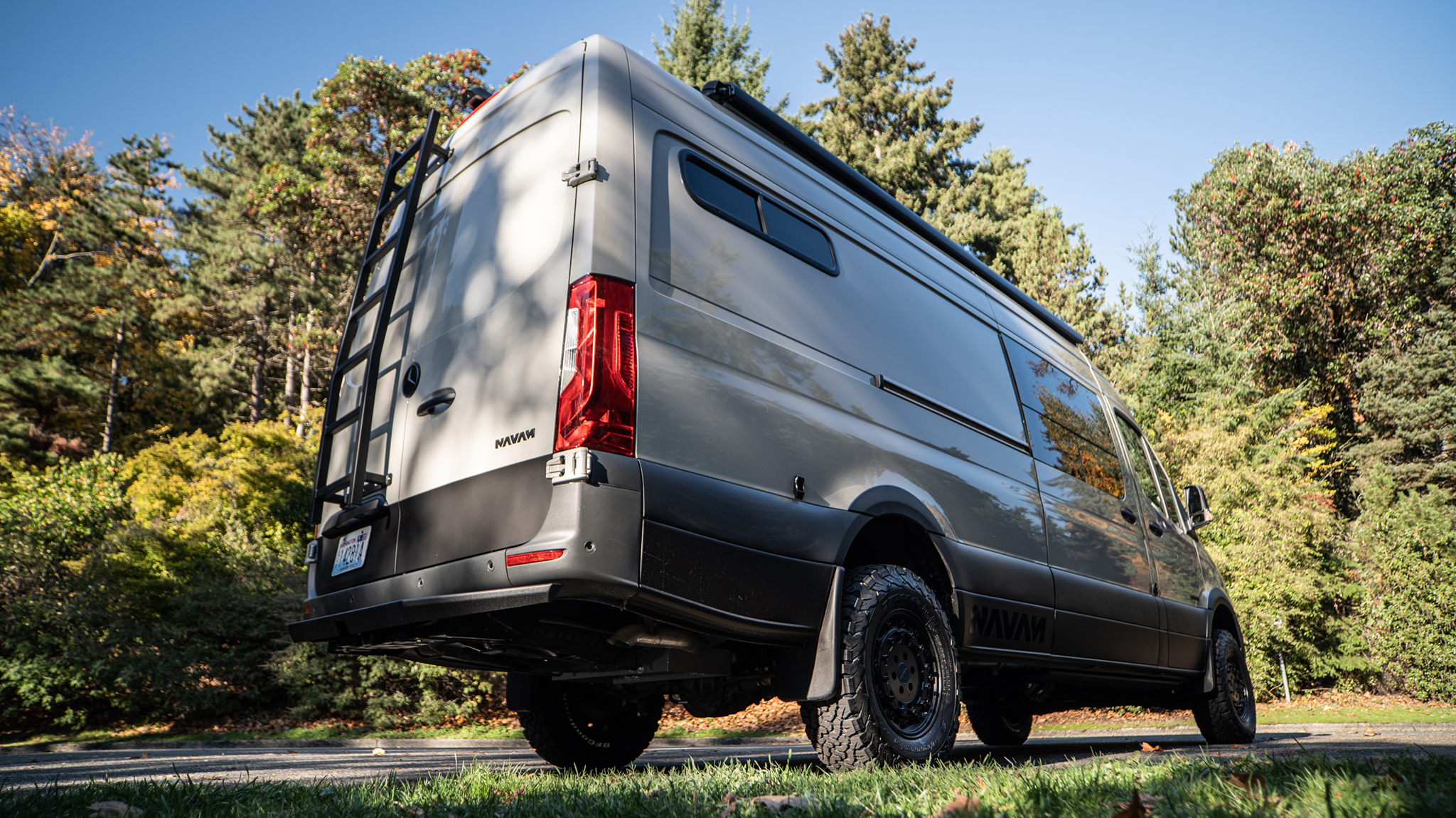

  • Aluminum rear ladder
  • Black front and rear Mercedes emblems
  • Roof light bar. 40", 250W double-row LED
Pana1926
Pana1937
Pana1938
Pana1947
Pana1948
Pana20191
Pana1827
Pana1922

- see the inside -
- see add-ons -

- ADD-ONS -

Available Add-ons

  • Seating: Additional Captains Chair
  • Fully removable slide-out gear tray with recessed Mac’s track, 2 custom bike attachment modules equipped with 2 Rocky Mountain thru-axle bike mounts. Also works great for snowboards/skis, or anything else you want quick and easy access to things stored under the panel bed
  • Snowboard/Ski vertical storage racks
  • SUP storage stanchions, keep boards from bouncing around while traveling. Works seamlessly with or without your slide-out gear tray
